Nylon Care 400 Lift-up support rail,
with 2 E-buttons (WC and call: NOC and NCC), L = 850 mm, connection covered with rose, Dark grey
€1,027.00*
*Prices excl. VAT
Article number: 0442785018
Downloads
Technical Specifications

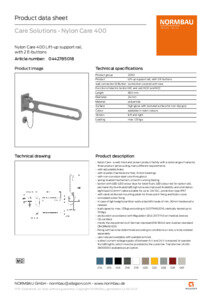

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Detail image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with adjustable brake
- with durable maintenance-free, friction bearings
- with non-corrosive steel core throughout
- spring-loaded mechanism, smooth-running folding
- button with LED: LED colour blue for toilet flush, LED colour red for option call, permanently illuminated LED light ensures improved findability and orientation, eight lead 0,14mm² helix cable suitable for up to 24V D.C., protection type IP67
- with steel reinforced mounting plate for three-point fixing and Nylon cover
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- load capacity: max. 125kgs according to ISO17966:2016, statically tested up to 150kgs
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- upon request available with padded armrest
- a direct current voltage supply of between 6 V and 24 V is required to operate the LED lights, which must be provided by the customer
- Product category : Lift-up support rail
- Product version : with 2 E-buttons
- Product group : 2000
- Length L : 850 mm
- Diameter : 34 mm
- Function of electric button : WC and call: NOC and NCC
- wall connection E-Button : connection covered with rose
- Material : polyamide
- Surface : high-gloss with textured surface for non-slip grip
- Version : left and right
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 125 kg
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
normbau@allegion.com
PRZ
MS
Care Mounting plate,
for fixing in front of the wall with panels and lightweight partition walls (without backfill), for Nylon Care 300 and Nylon Care 400, 200 x 15 x 850 mm, Cavere White
€350.00*
Care Fixing set MS 4.9 A 3,
for fixing in front of the wall with panels (with backfill for mounting plate made of steel), Colourless
€17.00*
Care Fixing set MS 4.9 C 3,
for fixing in front of the wall with panels and lightweight partition walls (with backfill), Colourless
€19.50*
Care Fixing set MS 4.9 H 3,
for fixing on brickwork made of perforated brick (without injectionscartridge), Colourless
€56.50*
Care Fixing set MS 4.9 H 13,
for fixing on brickwork made of perforated brick (with injectionscartridge), Colourless
€87.00*
