Care Mounting plate,
for fixing in front of the wall with panels and lightweight partition walls (without backfill), for Nylon Care 300 and Nylon Care 400, 200 x 15 x 850 mm, Cavere White
€378.00*
*Prices excl. VAT
Article number: 7448480092
- suitable for Nylon Care 300 and Nylon Care 400 wall-/lift-up support rails
- concealed screw fixing
- Supplied with mounting material for fixing the wall-/lift-up support rail to the mounting plate
- the screws (Ø 6 - 8 mm) for fixing the mounting plate to the wall are not included in the scope of delivery
- upon request available in other Cavere colours
- Product category : Mounting plate
- Product version : for fixing in front of the wall with panels and lightweight partition walls (without backfill)
- Product group : 2000
- Length : 200 mm
- Width : 15 mm
- Height : 850 mm
- Compatible for : for Nylon Care 300 and Nylon Care 400
- Material : aluminium
- Surface : scratch-resistant powder coating
- Type of wall : in front of the wall with panels without backfill and lightweight partition walls
- Colour : Cavere White
Downloads
Technical Specifications

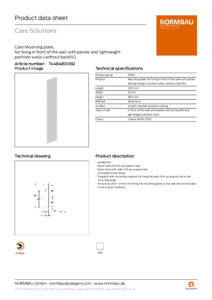

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
