Nylon Care 400 Lift-up support rail,
with 2 E-buttons (WC and call: NOC and NCC), L = 850 mm, connection covered with rose, Dark grey
€1,027.00*
*Prices excl. VAT
Article number: 0442785018
Downloads
Technical Specifications

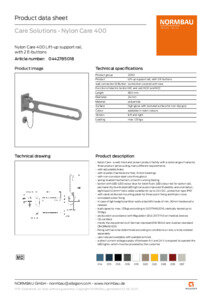

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image

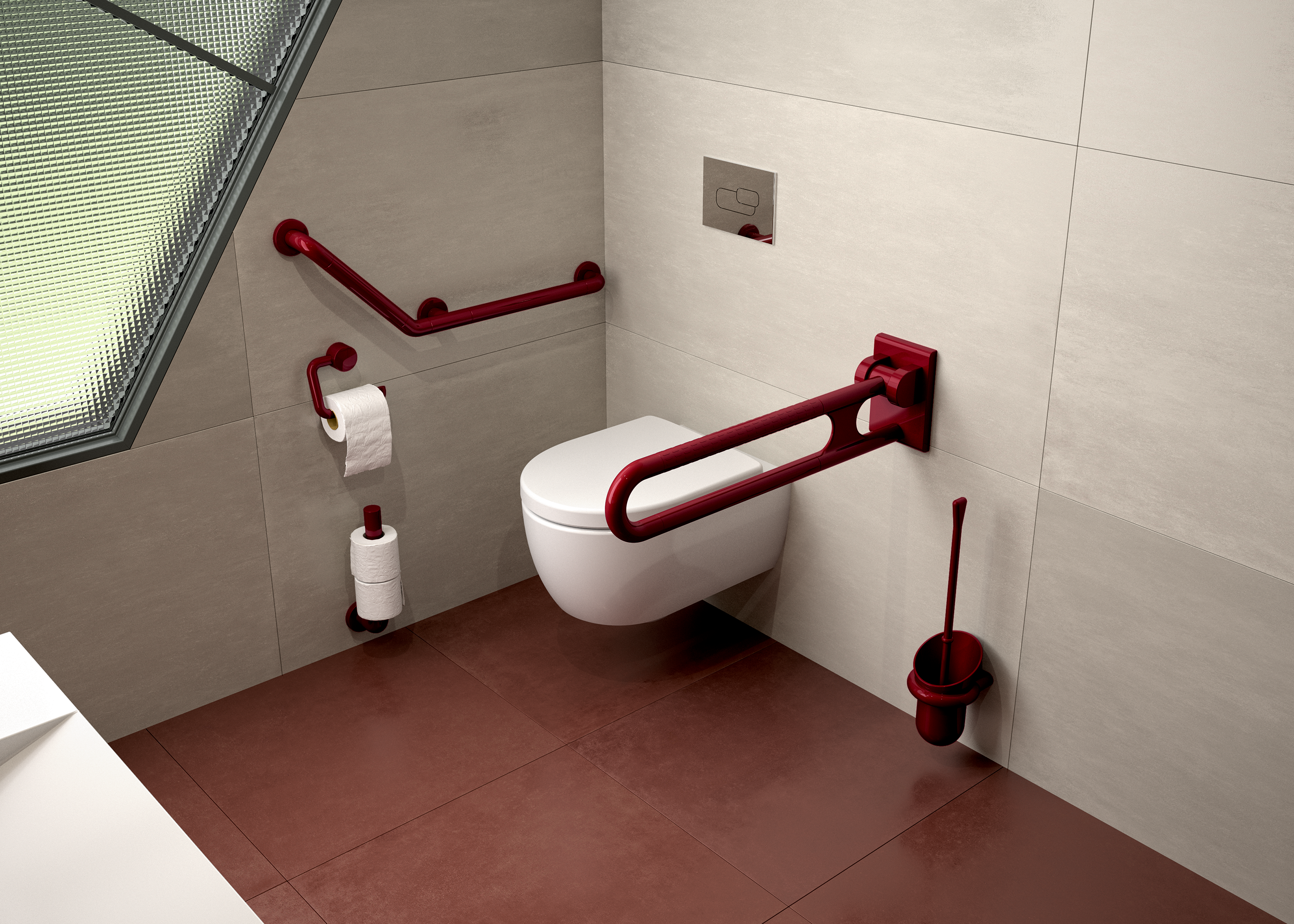

Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with adjustable brake
- with durable maintenance-free, friction bearings
- with non-corrosive steel core throughout
- spring-loaded mechanism, smooth-running folding
- button with LED: LED colour blue for toilet flush, LED colour red for option call, permanently illuminated LED light ensures improved findability and orientation, eight lead 0,14mm² helix cable suitable for up to 24V D.C., protection type IP67
- with steel reinforced mounting plate for three-point fixing and Nylon cover
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- load capacity: max. 125kgs according to ISO17966:2016, statically tested up to 150kgs
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- upon request available with padded armrest
- a direct current voltage supply of between 6 V and 24 V is required to operate the LED lights, which must be provided by the customer
- Product category : Lift-up support rail
- Product version : with 2 E-buttons
- Product group : 2000
- Length L : 850 mm
- Diameter : 34 mm
- Function of electric button : WC and call: NOC and NCC
- wall connection E-Button : connection covered with rose
- Material : polyamide
- Surface : high-gloss with textured surface for non-slip grip
- Version : left and right
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 125 kg
