Cavere Care Shower handrail,

with movable shower handrail, 500 x 750 mm, single-point mounting, Cavere Metallic anthracite

€372.00*

*Prices excl. VAT

Colour
Article number: 7485053095
  • Cavere Care as an award-winning product family with excellent design for all requirements
  • ergonomic by trigonometric handle contour
  • Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
  • side-mounted operating handle for one-handed operation without turning,
  • Shower head holder with plastic insert, suitable for various hand shower types
  • concealed screw fixing
  • single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
  • In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
  • Product category : Shower handrail
  • Product version : with movable shower handrail
  • Product group : 7000
  • Axle dimension a2 : 500 mm
  • Axle dimension a3 : 750 mm
  • Fixing points : 3 St.
  • Fixing type : single-point mounting
  • Material : aluminium
  • Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
  • Version : left and right
  • Colour : Cavere Metallic anthracite
  • Colours available : available in Cavere colours
  • Loading : max. 150 kg

Downloads

Technical Specifications

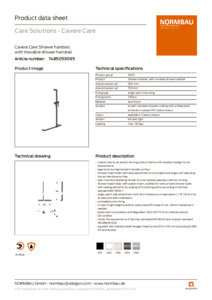

Product data sheet
