Ascento Hanging seat,

with backrest and armrests, for Cavere Care, 584 x 640 x 574 mm, Ascento Dark grey

€1,025.00*

*Prices excl. VAT

Colour
Article number: 8750025151
  • Ascento as Modular Seating Solution, expandible and combinable
  • for hanging in Cavere Care Shower handrails
  • ergonomic formed seat and backrest with rounded outer edges
  • with adjustable brake
  • locked in place in vertical position
  • for top edge of shower handrail 850mm the seat height corresponds 460 mm (DIN18040 und ÖNORM B1600)
  • concealed screw fixing
  • Product category : Hanging seat
  • Product version : with backrest and armrests
  • Product group : 8700
  • Length : 584 mm
  • Width : 640 mm
  • Height : 574 mm
  • Wide seat surface : 412 mm
  • Depth of the seat surface : 422 mm
  • Compatible for : for Cavere Care
  • Material : Polypropylene
  • Material addition : support bracket and suspension device made of aluminium
  • Surface : matt
  • Colour : Ascento Dark grey
  • Colours available : available in Ascento colours
  • Loading : max. 150 kg

Downloads

Technical Specifications

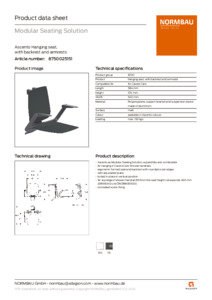

Product data sheet
