Ascento Hanging seat FR, with backrest and armrests, for Cavere Care, 584 x 640 x 574 mm, Ascento Dark grey

€1,025.00*

*Prices excl. VAT

Colour
Article number: 8750027151
  • Ascento as Modular Seating Solution, expandible and combinable
  • for hanging in Cavere Care Shower handrails ergonomic formed seat and backrest with rounded outer edges with adjustable brake locked in place in vertical position
  • for top edge of shower handrail 790-800mm concealed screw fixing
  • Product category : Hanging seat
  • Product version : with backrest and armrests
  • Product group : 8700
  • Length : 584 mm
  • Width : 640 mm
  • Height : 574 mm
  • Wide seat surface : 412 mm
  • Depth of the seat surface : 419 mm
  • Compatible for : for Cavere Care
  • Material : Polypropylene
  • Material addition : support bracket and suspension device made of aluminium
  • Surface : matt
  • Colour : Ascento Dark grey
  • Colours available : available in Ascento colours
  • Loading : max. 150 kg

Downloads

Technical Specifications

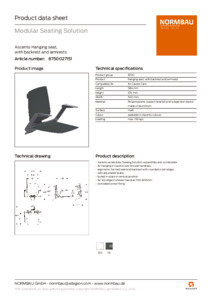

Product data sheet
Technical Drawing
Isometric drawing

Images

Product image
Situational image

Overall download

ZIP file
