Cavere Care Hanging seat FR,

450 x 563 x 406 mm, Cavere Metallic anthracite, padded colour anthracite

Downloads

Technical Specifications

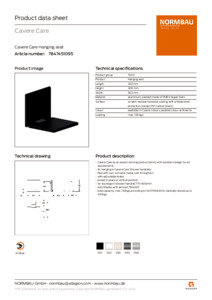

Product data sheet
Technical Drawing
Isometric drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file
  • Cavere Care as an award-winning product family with excellent design for all requirements
  • for hanging in Cavere Care Shower handrails
  • Pad with non-corrosive metal core throughout,
  • with adjustable brake
  • locked in place in vertical position
  • for top edge of shower handrail 770-800mm
  • retrofittable with armrest 7843100
  • load capacity: max. 150kgs according to ISO17966:2016, statically tested up to 200kgs
  • Product category : Hanging seat
  • Product group : 7000
  • Length : 450 mm
  • Width : 563 mm
  • Height : 406 mm
  • Wide seat surface : 450 mm
  • Depth of the seat surface : 405 mm
  • Additional colour : padded colour anthracite
  • Material : aluminium
  • Material addition : padded made of PUR integral foam
  • Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
  • Colour : Cavere Metallic anthracite
  • Loading : max. 150 kg
