Inox Care Base plate vario,
with cover plate blind, 226 x 110 x 23 mm, Satin
€91.50*
*Prices excl. VAT
Article number: 2050200009
Downloads
Technical Specifications

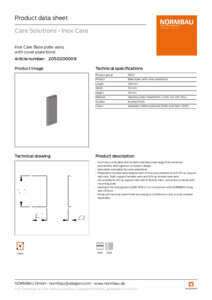

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Situational image
Overall download
ZIP file
- Inox Care is a durable and versatile stainless steel range that combines accessibility and hygiene in a modern design
- base plate concealed by cover plate blind
- Preparation for later easy replacement of the cover plate blind with lift-up support rails vario, Wall-support handles vario and Lift-up shower seat vario
- not suitable for lift-up support rails with E-Button vario, connection covered with mounting plate
- sealing of the drilling points (DIN 18534-1) in conjunction with NORMBAU fixing sets 7470xxx
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Base plate
- Product version : with cover plate blind
- Product group : 5500
- Length : 226 mm
- Width : 110 mm
- Height : 23 mm
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Surface : brushed finish
- Colour : Satin
- Colours available : available in Mirror polished (008) and Satin (009)
