Care Fixing set, for fixing on brickwork made of perforated brick (with injectionscartridge), Colourless
€101.00*
*Prices excl. VAT
Article number: 7470040000
- suitable for: Cavere Care and Cavere Care: wall-/lift-up support rails, base plate with cover plate blind, lift-up shower seat, shower guard rail and Backrest for for Lift-up support rails with E-Button, connection by cover plate blind Inox Care wall-/lift-up support rails, base plate with cover plate blind and shower guard rail Verso Care and Verso Care Duo wall-/lift-up support rails, base plate with cover plate blind Verso Care shower guard rail Ascento: Modular Seating Solution
- Attention: Product with expiry date
- installation has to be carried out by professionals
- the fixing set are allowed by building inspector
- Product category : Fixing set
- Product version : for fixing on brickwork made of perforated brick (with injectionscartridge)
- Product group : 7000

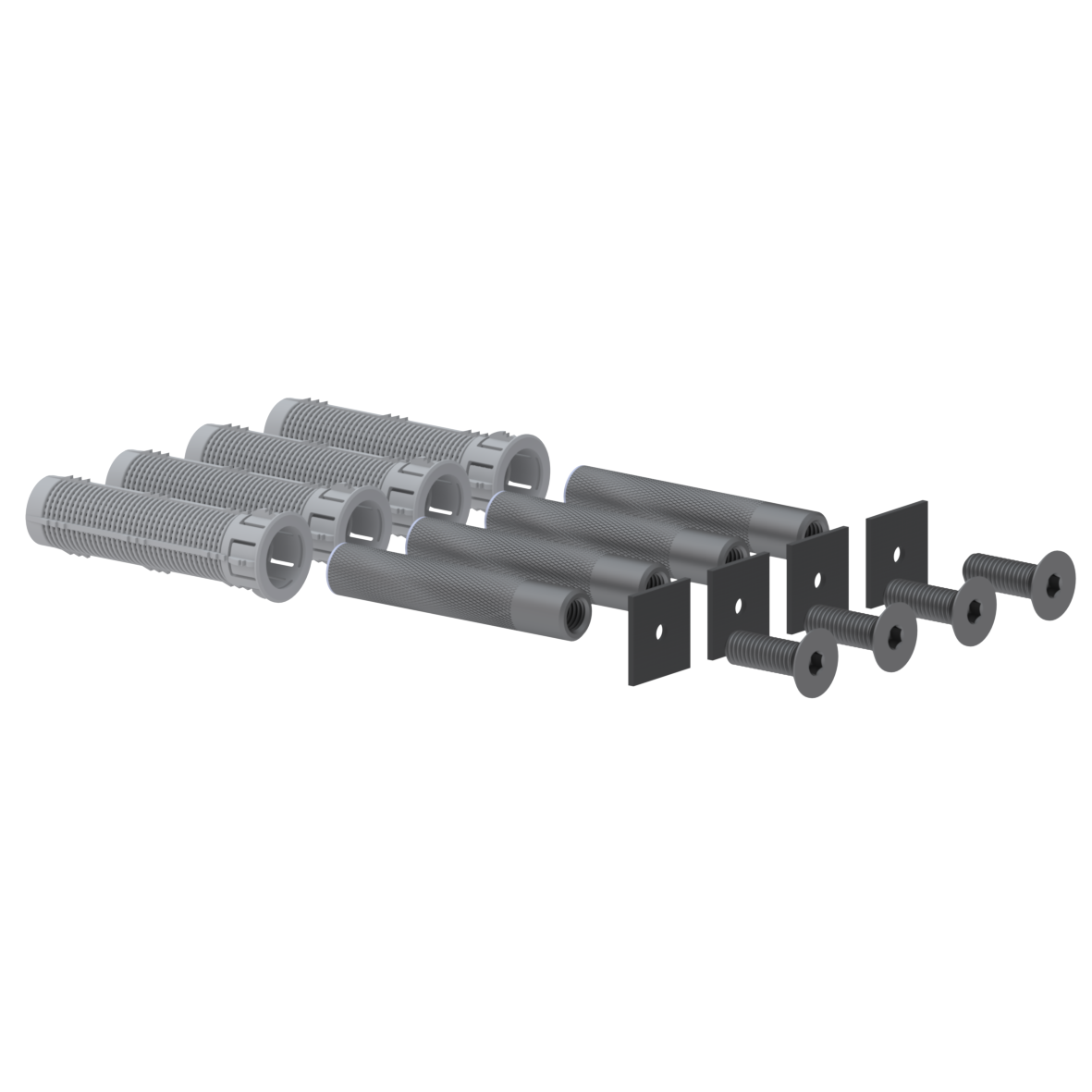

- Material & scope of delivery : 4 x countersunk head screw M10 x 30, A4-AISI 316 4 x sieve sleeve Ø 20 x 100 4 x internal threaded steel sleeves Ø 15 x 75 / M10 1 x injection cartridge with compound mortar 145cm³
- Type of wall : On brickwork made of perforated brick:perforated brick HLz ≥ 12, cavity brick KSL ≥ 12, checker brick ≥ Hbl4, Hbn4 other hollow brick materials concrete/ lightweight concrete, solid brick ≥ Mz12 sand-lime brick ≥KS12, natural stone with compact
- Colour : Colourless
Downloads
Technical Specifications
Product data sheet

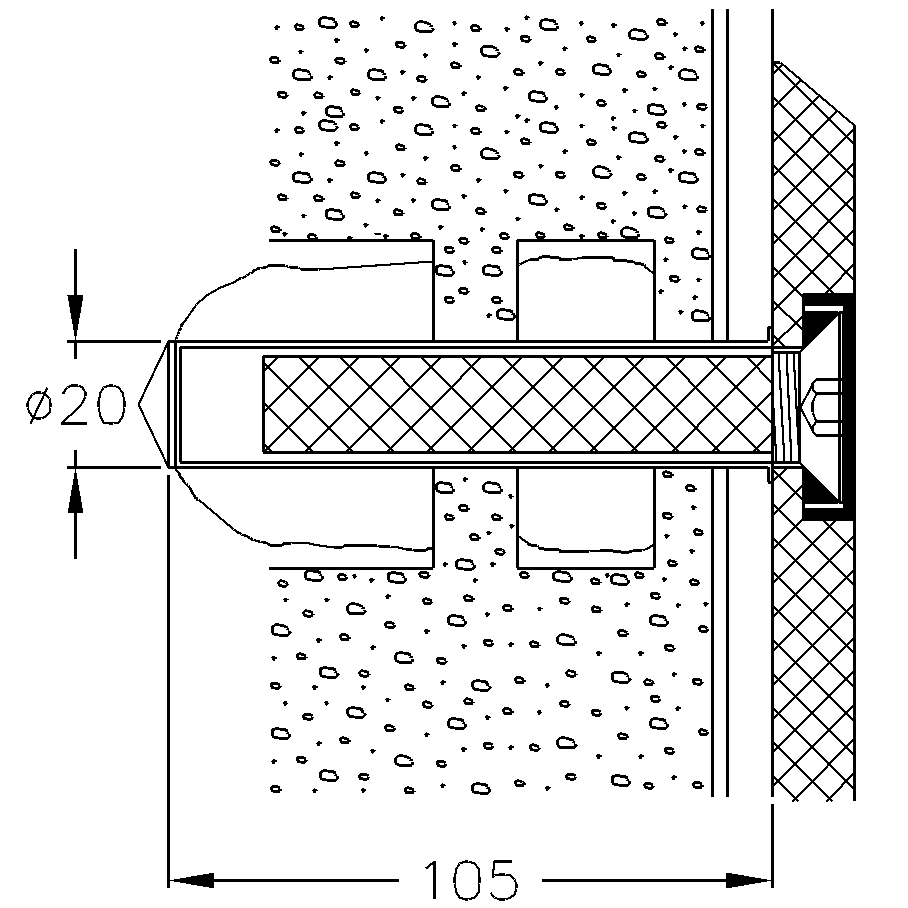

Technical Drawing
