Nylon Care 400 Lift-up support rail,
with remote control, right, L = 850 mm, Dark grey
€1,044.00*
*Prices excl. VAT
Article number: 0447375018
Downloads
Technical Specifications

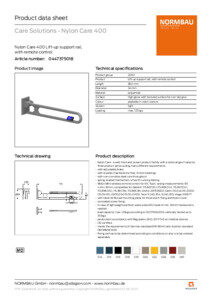

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with adjustable brake
- with durable maintenance-free, friction bearings
- with non-corrosive steel core throughout
- spring-loaded mechanism, smooth-running folding
- 868,4 MHz wireless remote control for WC flush, casing measurements: 85 x 46 x 16mm, compatible for Geberit: 115.867.00.1,115.869.00.1, 115.897.00.1, 115.898.00.1, 115.867.SN, 115.869.SN, Grohe: 38759SD0, Sanit: 05.042.00..0000, 05.014.00..0000,05.015.00..0000, Tece: 9.240.354, 9.240.355, Viega: 696177
- with steel reinforced mounting plate for three-point fixing and Nylon cover
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- certified by TÜV PRODUCT SERVICE
- load capacity: max. 125kgs according to ISO17966:2016, statically tested up to 150kgs
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up support rail
- Product version : with remote control
- Product group : 2000
- Length L : 850 mm
- Diameter : 34 mm
- Material : polyamide
- Surface : high-gloss with textured surface for non-slip grip
- Version : right
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 125 kg
