Nylon Care 400 Lift-up support rail,

with remote control, right, L = 850 mm, Dark grey

Downloads

Technical Specifications

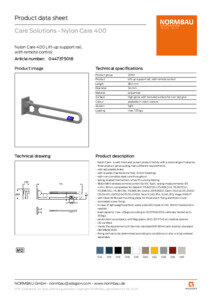

Product data sheet

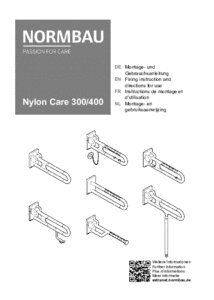

Fixing instruction and directions for use
Technical Drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • with adjustable brake
  • with durable maintenance-free, friction bearings
  • with non-corrosive steel core throughout
  • spring-loaded mechanism, smooth-running folding
  • 868,4 MHz wireless remote control for WC flush, casing measurements: 85 x 46 x 16mm, compatible for Geberit: 115.867.00.1,115.869.00.1, 115.897.00.1, 115.898.00.1, 115.867.SN, 115.869.SN, Grohe: 38759SD0, Sanit: 05.042.00..0000, 05.014.00..0000,05.015.00..0000, Tece: 9.240.354, 9.240.355, Viega: 696177
  • with steel reinforced mounting plate for three-point fixing and Nylon cover
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
  • certified by TÜV PRODUCT SERVICE
  • load capacity: max. 125kgs according to ISO17966:2016, statically tested up to 150kgs
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up support rail
  • Product version : with remote control
  • Product group : 2000
  • Length L : 850 mm
  • Diameter : 34 mm
  • Material : polyamide
  • Surface : high-gloss with textured surface for non-slip grip
  • Version : right
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 125 kg

Tender specification

ausschreiben.de

Manufacturer

Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
