Cavere Care Shower handrail,
450 x 450 mm, single-point mounting, Cavere Metallic anthracite
€188.00*
*Prices excl. VAT
Article number: 7484054095
Downloads
Technical Specifications

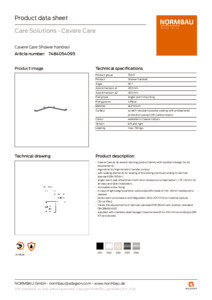

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images

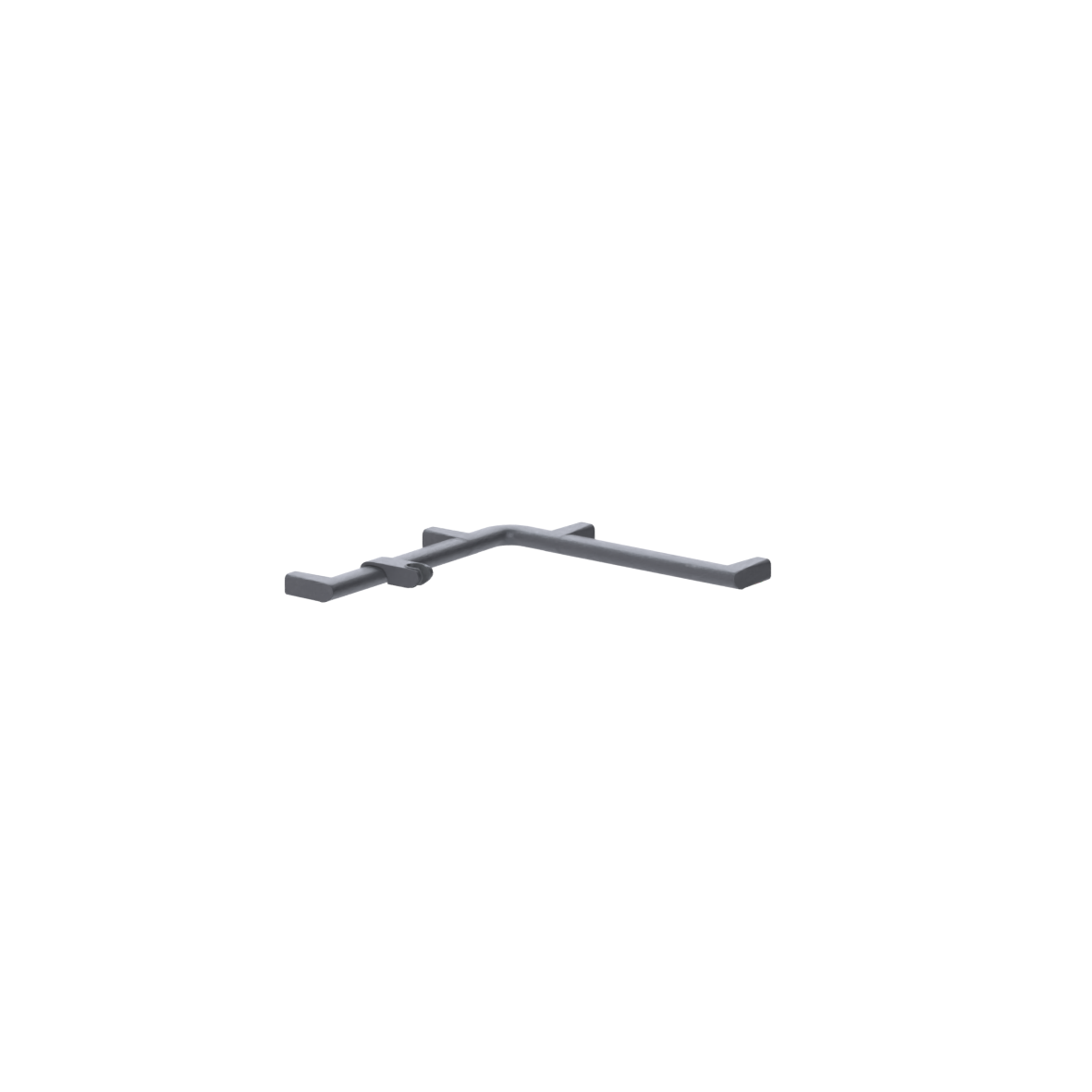

Product image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- ergonomic by trigonometric handle contour
- with sealing elements for sealing of the drilling points according to German standard DIN 18534-1
- single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
- Product category : Shower handrail
- Product group : 7000
- Axle dimension a1 : 450 mm
- Axle dimension a2 : 450 mm
- Fixing points : 4 St.
- Fixing type : single-point mounting
- Material : aluminium
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Version : left and right
- Colour : Cavere Metallic anthracite
- Colours available : available in Cavere colours
- Loading : max. 150 kg
