Cavere Care Shower handrail,
450 x 450 mm, Cavere Metallic anthracite
€192.00*
*Prices excl. VAT
Article number: 7484044095
Downloads
Technical Specifications

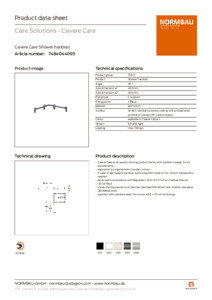

Product data sheet

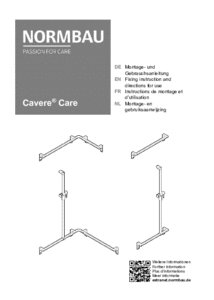

Fixing instruction and directions for use

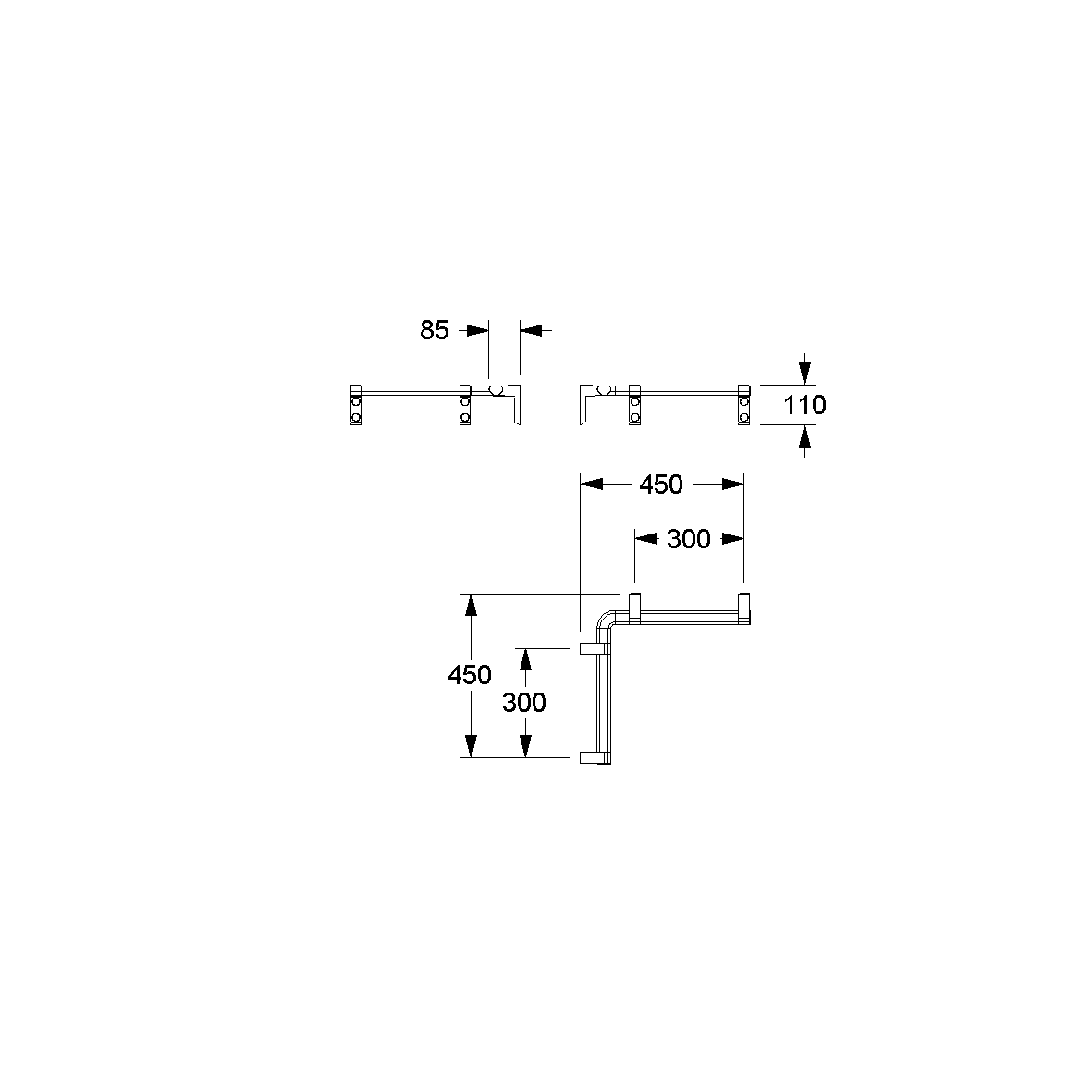

Technical Drawing

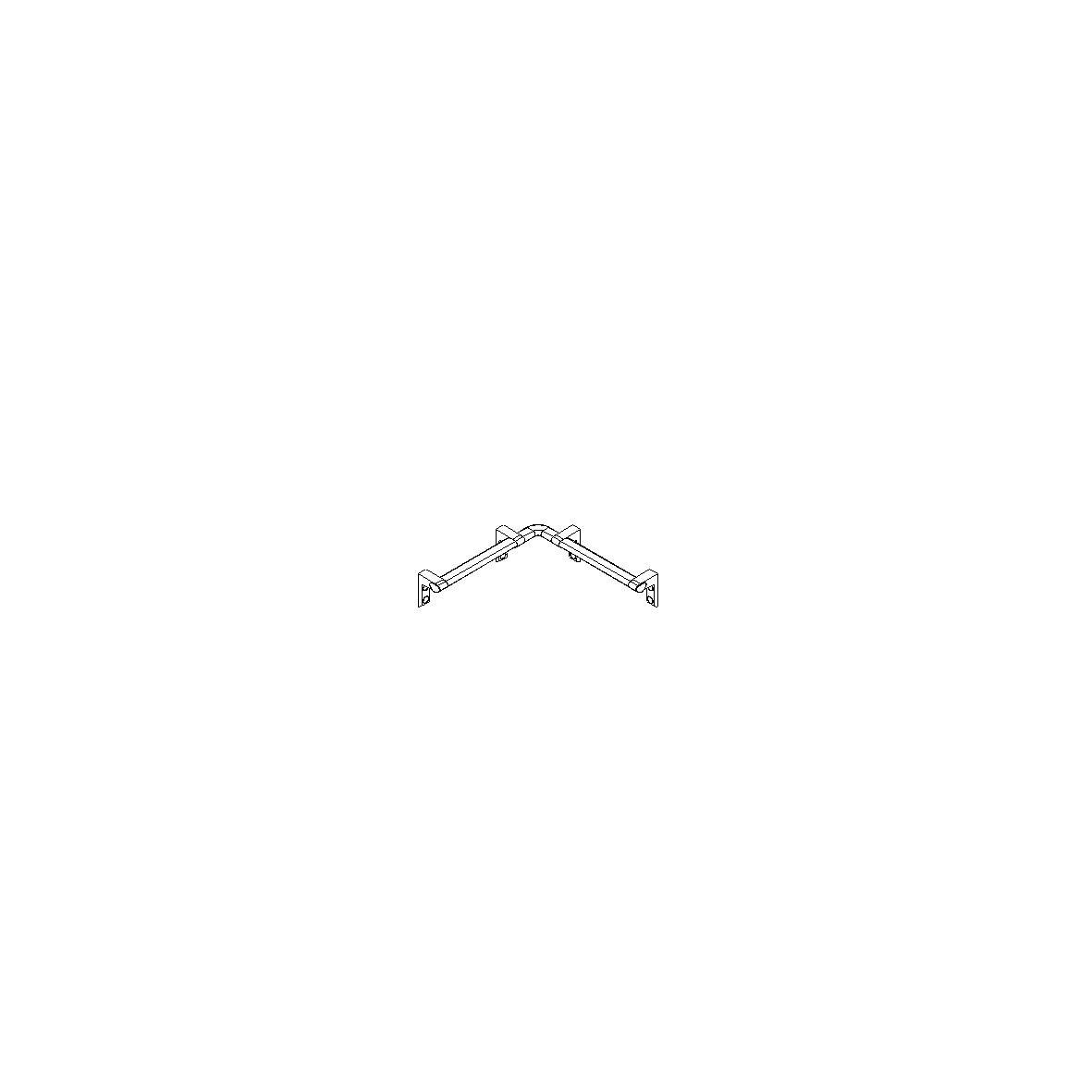

Isometric drawing
Images

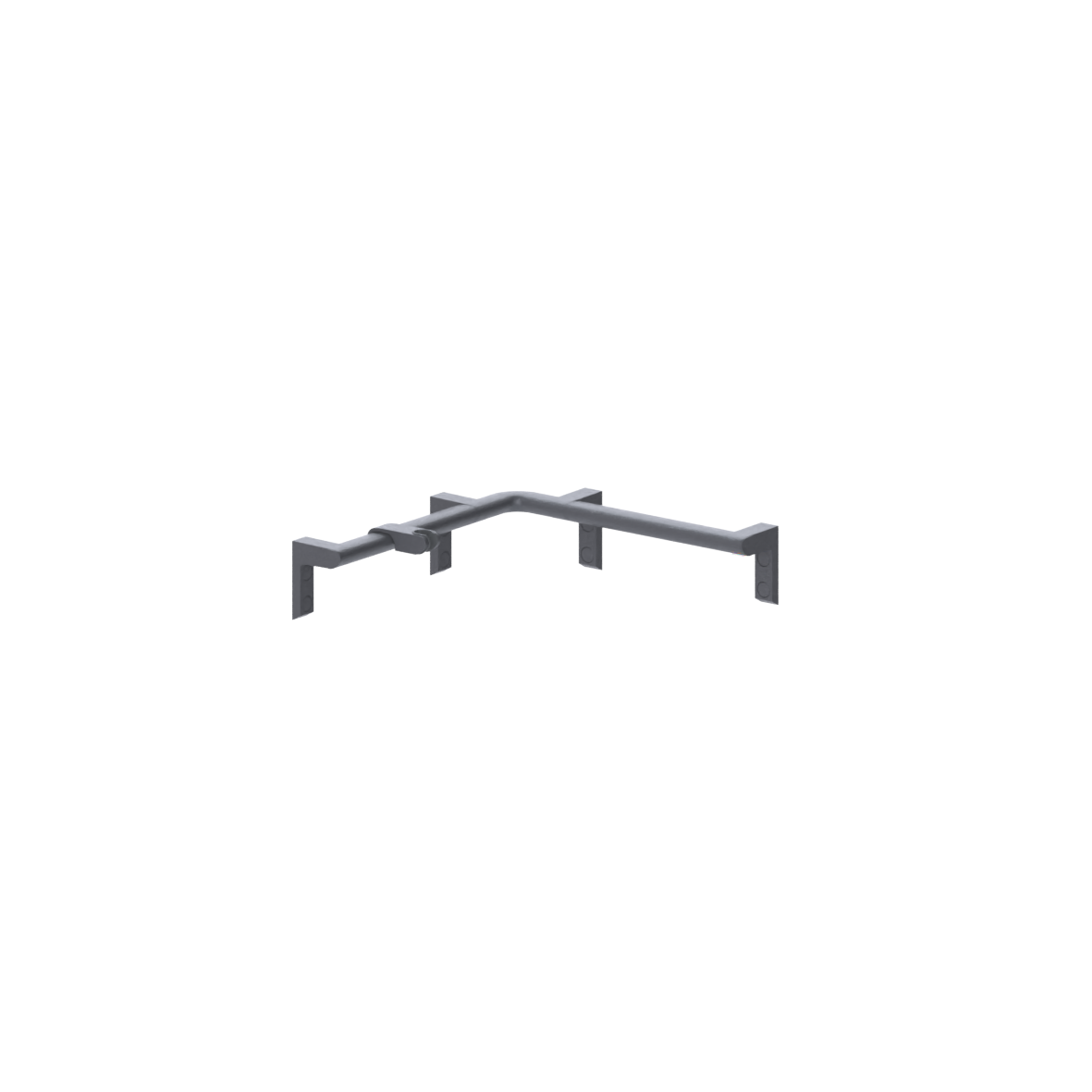

Product image
Detail image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- ergonomic by trigonometric handle contour
- Maintenance-free shower head holder for hooking onto the horizontal handrail for optimized reach while seated and during care assistance
- Mounting cone of both hand shower holders with plastic insert, suitable for various hand shower types
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower handrail
- Product group : 7000
- Axle dimension a1 : 450 mm
- Axle dimension a2 : 450 mm
- Fixing points : 4 St.
- Fixing type : L-support
- Material : aluminium
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Version : left and right
- Colour : Cavere Metallic anthracite
- Colours available : available in Cavere colours
- Loading : max. 150 kg
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
