Care Fixing set,
for fixing on brickwork made of perforated brick (with injectionscartridge), Colourless
€104.00*
*Prices excl. VAT
Article number: 7470040000
Downloads
Technical Specifications

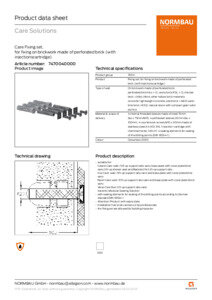

Product data sheet
Technical Drawing
Isometric drawing
Images
Product image
Overall download
ZIP file
- suitable for: Cavere Care: wall-/lift-up support rails vario, base plate with cover plate blind vario, lift-up shower seat and Backrest for Lift-up support rails Inox Care: wall-/lift-up support rails vario and base plate with cover plate blind vario Nylon Care: wall-/lift-up support rails vario and base plate with cover plate blind vario Verso Care Duo: lift-up support rails vario Ascento: Modular Seating Solution
- with sealing elements for sealing of the drilling points according to German standard DIN 18534-1
- Attention: Product with expiry date
- installation has to be carried out by professionals
- the fixing set are allowed by building inspector
- Product category : Fixing set
- Product version : for fixing on brickwork made of perforated brick (with injectionscartridge)
- Product group : 7000
- Material & scope of delivery : 4 internal threaded sleeves made of steel 15mm dia. x 75mm/M10, 4 perforated sleeves 20mm dia. x 100mm, 4 countersunk screws M10 x 30mm made of stainless steel A4-AISI 316, 1 injection-cartridge with chemicalmortar 145cm³, 4 sealing elements for sealing
- Type of wall : On brickwork made of perforated brick:perforated brick HLz ≥ 12, cavity brick KSL ≥ 12, checker brick ≥ Hbl4, Hbn4 other hollow brick materials concrete/ lightweight concrete, solid brick ≥ Mz12 sand-lime brick ≥KS12, natural stone with compact
- Colour : Colourless
