Nylon Care 300 Lift-up support rail,
with floor support (800 mm), L = 900 mm, Dark grey, Antibac
Discontinued as of March 31, 2025
€700.00*
*Prices excl. VAT
Article number: 4300434018
Downloads
Technical Specifications

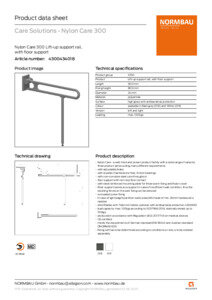

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with adjustable brake
- with durable maintenance-free, friction bearings
- with non-corrosive steel core throughout
- floor support with non-slip floor contact
- with steel reinforced mounting plate for three-point fixing and Nylon cover
- Floor support serves as a support in case of insufficient wall condition, thus the resulting forces on the wall fixing can be reduced
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
- load capacity: max. 100kgs according to ISO17966:2016, statically tested up to 150kgs
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up support rail
- Product version : with floor support
- Product group : 0700
- Length L : 900 mm
- Diameter : 34 mm
- Fixing height : 800 mm
- Material : polyamide
- Surface : high gloss with antibacterial protection
- Version : left and right
- Colour : Dark grey
- Colours available : available in Dark grey (018) and White (019)
- Loading : max. 100 kg
