Nylon Privacy Thumbturn NY.TWR 840.03,

coin release, with distance piece, 12 mm, 80 x 85 x 52 mm, Dark grey

€16.00*

*Prices excl. VAT

Colour
Article number: 0840080018

Downloads

Technical Specifications

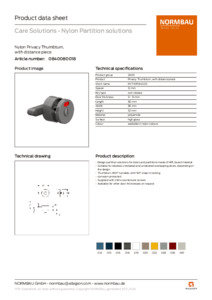

Product data sheet
PDF
Fixing instruction and directions for use
PDF
Technical Drawing
DXF TIF DWG PNG
Isometric drawing
DWG PNG DXF TIF

Images

Product image
PNG TIF
Product image 2
TIF PNG

Overall download

ZIP file
ZIP
  • Design partition solutions for doors and partitions made of HPL board material
  • Suitable for rebated, unrebated and unrebated overlapping doors, depending on the design
  • Thumbturn 360° turnable, with 90° snap-in locking
  • corrosion protected
  • Supplied with 2 M4 countersunk screws
  • Available for other door thicknesses on request
  • Product category : Privacy Thumbturn
  • Product version : with distance piece
  • Short name : NY.TWR 840.03
  • Product group : 2600
  • Length : 80 mm
  • Width : 85 mm
  • Height : 52 mm
  • Key type : coin release
  • Spacer : 12 mm
  • Door thickness : 9 - 13 mm
  • Material : polyamide
  • Surface : high gloss
  • Colour : Dark grey
  • Colours available : available in nylon colours
