Nylon Care 300 Shower curtain rail, with curtain rings, L-shaped, 900 x 900 mm, Dark grey
€236.00*
*Prices excl. VAT
Article number: 0300811018
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- can be shortened (length)
- with connection thread for ceiling support, ceiling support has to be ordered separately.
- Nylon curtain rings corresponding to to colour tone of the hower curtain
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- expandable with Care shower curtains
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- upon request available in different lenghts
- Product category : Shower curtain rail
- Product version : with curtain rings
- Product group : 0700
- Axle dimension a1 : 900 mm
- Axle dimension a2 : 900 mm
- Diameter : 34 mm
- Form : L-shaped
- Curtain rings : 17 St.
- Material : polyamide
- Surface : high gloss
- Colour : Dark grey
- Colours available : available in nylon colours
Downloads
Technical Specifications

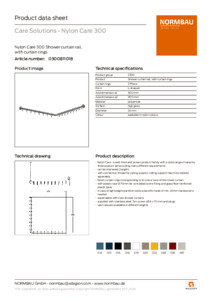

Product data sheet
