Care Hanging seat,
with hygiene recess, 450 x 563 x 420 mm, Cavere Metallic anthracite, padded colour anthracite
€1,110.00*
*Prices excl. VAT
Article number: 0847719095
Downloads
Technical Specifications

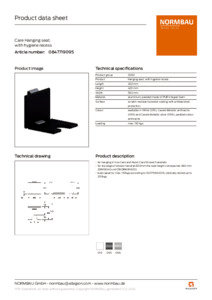

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Overall download
ZIP file
- for hanging in Inox Care and Nylon Care Shower handrails
- for top edge of shower handrail 850mm the seat height corresponds 480 mm (DIN18040 und ÖNORM B1600)
- load capacity: max. 150kgs according to ISO17966:2016, statically tested up to 200kgs
- Product category : Hanging seat
- Product version : with hygiene recess
- Product group : 2000
- Length : 450 mm
- Width : 563 mm
- Height : 420 mm
- Wide seat surface : 450 mm
- Depth of the seat surface : 405 mm
- Additional colour : padded colour anthracite
- Material : aluminium
- Material addition : padded made of PUR integral foam
- Surface : scratch-resistant powder coating with antibacterial protection
- Colour : Cavere Metallic anthracite
- Colours available : available in White (019), Cavere Metallic anthracite (095) and Cavere Metallic silver (096)
- Loading : max. 175 kg
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
