Inox Care Shower head rail,
1100 mm, Stainless steel, shower head holder, colour dark grey (018)
€176.00*
*Prices excl. VAT
Article number: 2053160009
Downloads
Technical Specifications

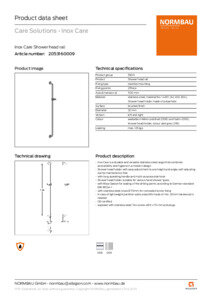

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Inox Care as a robust and timeless classic with bacteriostatic properties
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- with long operating handle and multi-purpose side hook
- Shower head holder suitable for various hand shower types
- with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
- with stainless steel roses Ø 70mm for concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- CE-certified
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower head rail
- Product group : 5500
- Axle dimension a1 : 1100 mm
- Diameter : 32 mm
- Fixing points : 2 St.
- Fixing type : rosettes mounting
- Additional colour : shower head holder, colour dark grey (018)
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Material addition : Shower head holder made of polyamide
- Surface : brushed finish
- Version : left and right
- Colour : Stainless steel
- Loading : max. 125 kg
