Nylon Care Adapter set,
intermediate plates, for Nylon Care Backrest, 12 x 155 x 227 mm, Dark grey
€107.00*
*Prices excl. VAT
Article number: 0300367018
Downloads
Technical Specifications

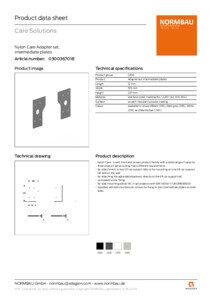

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- for attachment to two lift-up support tails or for mounting on one lift-up support rail and on the wall
- for attaching the adjustable backrest directly to the lift-up support rail
- concealed screw fixing
- for wall mounting above WC in accordance with DIN 18040-1/ONORM B1600
- supplied with M6 countersunk screws for fixing to the intermediate plates on both sides
- Product category : Adapter set
- Product version : intermediate plates
- Product group : 0700
- Length : 12 mm
- Width : 155 mm
- Height : 227 mm
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Surface : scratch-resistant powder coating
- Colour : Dark grey
- Colours available : available in colours Black (016), Dark grey (018), White (019) and Manhattan (067)
