Nylon Care 400 Lift-up shower seat,
406 x 410 x 100 mm, Pastel blue
€650.00*
*Prices excl. VAT
Article number: 0841010014
Downloads
Technical Specifications

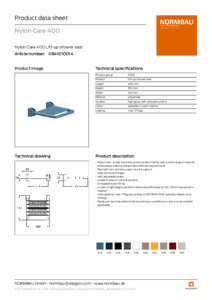

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- Pad with non-corrosive steel core throughout
- steel reinforced hinges
- with adjustable brake
- locked in place in vertical position
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- load capacity: max. 175kgs according to ISO17966:2016, statically tested up to 200kgs
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up shower seat
- Product group : 2000
- Length : 406 mm
- Width : 410 mm
- Height : 100 mm
- Wide seat surface : 380 mm
- Depth of the seat surface : 320 mm
- Material : polyamide
- Surface : high-gloss with textured surface
- Colour : Pastel blue
- Colours available : available in nylon colours
- Loading : max. 175 kg
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
normbau@allegion.com
