Cavere Care Shower head rail, movable, 1100 mm, single-point mounting, Cavere Metallic anthracite
€270.00*
*Prices excl. VAT
Article number: 7488110095
- Cavere Care as an award-winning product family with excellent design for all requirements
- for retrofitting to Cavere Care shower handrails
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- side-mounted operating handle for one-handed operation without turning,
- Shower head holder with plastic insert, suitable for various hand shower types
- single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- CE-certified
- supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
- Product category : Shower head rail
- Product version : movable
- Product group : 7000
- Axle dimension a1 : 1100 mm
- Fixing points : 1 St.
- Fixing type : single-point mounting
- Material : aluminium
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Version : left and right
- Colour : Cavere Metallic anthracite
- Colours available : available in Cavere colours
- Loading : max. 100 kg
Downloads
Technical Specifications

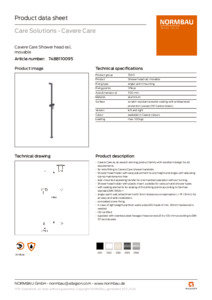

Product data sheet
