Nylon Care Mounting plate,
132 x 20 x 200 mm, Dark grey
€93.50*
*Prices excl. VAT
Article number: 0448260018
Downloads
Technical Specifications

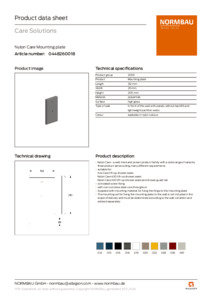

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- suitable for: Inox Care lift-up shower seats Nylon Care 400 lift-up shower seats Nylon Care 300 lift-up shower seats and shower guard rail
- concealed screw fixing
- with non-corrosive steel core throughout
- Supplied with mounting material for fixing the hinge to the mounting plate
- The mounting set for fixing the mounting plate to the wall is not included in the scope of delivery and must be determined according to the wall condition and ordered separately
- Product category : Mounting plate
- Product group : 2000
- Length : 132 mm
- Width : 20 mm
- Height : 200 mm
- Material : polyamide
- Surface : high gloss
- Type of wall : in front of the wall with panels without backfill and lightweight partition walls
- Colour : Dark grey
- Colours available : available in nylon colours
