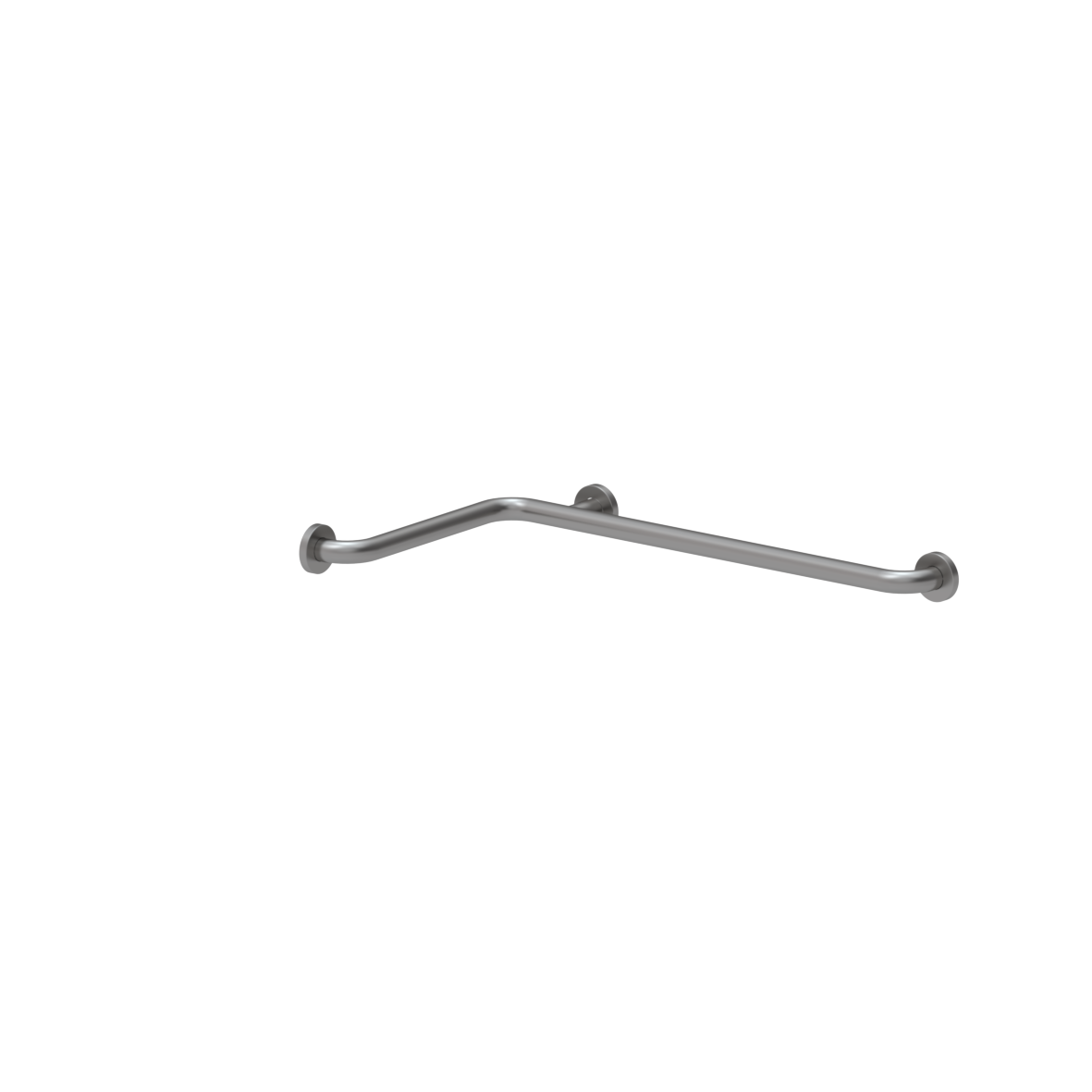

Inox Care Shower handrail,
400 x 750 mm, Stainless steel
€211.00*
*Prices excl. VAT
Article number: 2058030009
- Inox Care as a robust and timeless classic with bacteriostatic properties
- with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
- with stainless steel roses Ø 70mm for concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower handrail
- Product group : 5500
- Axle dimension a1 : 400 mm
- Axle dimension a2 : 750 mm
- Diameter : 32 mm
- Fixing points : 3 St.
- Fixing type : rosettes mounting
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Surface : brushed finish
- Version : left and right
- Colour : Stainless steel
- Loading : max. 175 kg
