Nylon Care 400 Shower curtain rail,
with curtain rings, I-shaped, L = 526 - 1050 mm, Dark grey
€156.00*
*Prices excl. VAT
Article number: 0781220018
Downloads
Technical Specifications

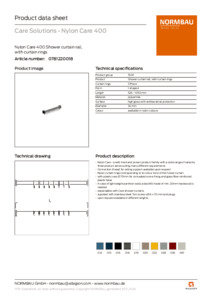

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- Connection thread for ceiling support available upon request
- Nylon curtain rings corresponding to to colour tone of the hower curtain
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- expandable with Care shower curtains
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- upon request available in different lenghts
- Product category : Shower curtain rail
- Product version : with curtain rings
- Product group : 1500
- Length L : 526 - 1050 mm
- Diameter : 34 mm
- Form : I-shaped
- Curtain rings : 11 St.
- Material : polyamide
- Surface : high gloss with antibacterial protection
- Colour : Dark grey
- Colours available : available in nylon colours
