Special Care Adipositas Lift-up shower seat,
with support feet, 534 x 467 x 498 mm, Dark grey
€981.00*
*Prices excl. VAT
Article number: 0457811018
Downloads
Technical Specifications

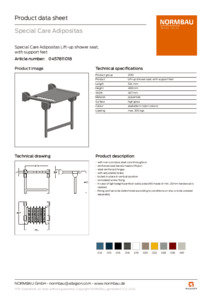

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- with non-corrosive steel core throughout
- reinforced seat bands made of Nylon
- steel reinforced hinges
- with adjustable brake
- locked in place in vertical position
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up shower seat
- Product version : with support feet
- Product group : 2010
- Length : 534 mm
- Width : 467 mm
- Height : 498 mm
- Wide seat surface : 508 mm
- Depth of the seat surface : 383 mm
- Material : polyamide
- Surface : high gloss
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 300 kg
