Inox Care Shower handrail,
with shower head rail, 5001200 mm, Mirror polished
€326.00*
*Prices excl. VAT
Article number: 2062410008
Downloads
Technical Specifications

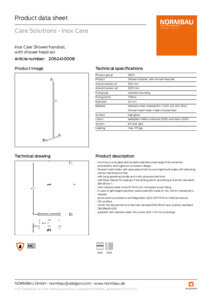

Product data sheet
Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Inox Care is a durable and versatile stainless steel range that combines accessibility and hygiene in a modern design
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- with long operating handle and multi-purpose side hook
- with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
- with stainless steel roses Ø 70mm for concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower handrail
- Product version : with shower head rail
- Product group : 5500
- Axle dimension a1 : 500 mm
- Axle dimension a3 : 1200 mm
- Diameter : 32 mm
- Fixing points : 3 St.
- Fixing type : rosettes mounting
- Additional colour : Brausehalter in Weiß (019)
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Material addition : Shower head holder made of polyamide
- Surface : high gloss
- Version : left and right
- Colour : Mirror polished
- Loading : max. 175 kg
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
