Nylon Care 400 Hanging seat, 380 x 563 x 420 mm, Cavere Metallic anthracite
€998.00*
*Prices excl. VAT
Article number: 0847710095
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- for hanging in Cavere Care Shower handrails
- for hanging in Inox Care and Nylon Care Shower handrails
- Pad with non-corrosive metal core throughout,
- with adjustable brake
- locked in place in vertical position
- with non-corrosive steel core throughout
- steel reinforced hinges
- with adjustable brake
- locked in place in vertical position
- for top edge of shower handrail 850mm the seat height corresponds 480 mm (DIN18040 und ÖNORM B1600)
- for top edge of shower handrail 850mm the seat height corresponds 460 mm (DIN18040 und ÖNORM B1600)
- retrofittable with armrest 7843100
- Product category : Hanging seat
- Product group : 2000
- Length : 380 mm
- Width : 563 mm
- Height : 420 mm
- Wide seat surface : 380 mm
- Depth of the seat surface : 405 mm
- Material : aluminium
- Material addition : padded made of PUR integral foam
- Surface : scratch-resistant powder coating with antibacterial protection
- Colour : Cavere Metallic anthracite
- Colours available : available in White (019), Cavere Metallic anthracite (095) and Cavere Metallic silver (096)
- Loading : max. 175 kg
Downloads
Technical Specifications

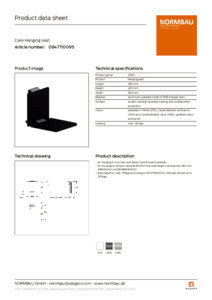

Product data sheet
