Nylon Care 400 Shower handrail,
with shower head rail, 1004 x 767 x 1100 mm, Manhattan
€687.00*
*Prices excl. VAT
Article number: 0486052067
Downloads
Technical Specifications

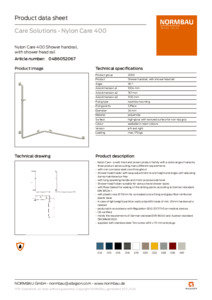

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with non-corrosive steel core throughout
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- with long operating handle and multi-purpose side hook
- Shower head holder suitable for various hand shower types
- with Rose Gasket for sealing of the drilling points according to German standard DIN 18534-1
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Shower handrail
- Product version : with shower head rail
- Product group : 2000
- Axle dimension a1 : 1004 mm
- Axle dimension a2 : 767 mm
- Axle dimension a3 : 1100 mm
- Diameter : 34 mm
- Fixing points : 5 St.
- Fixing type : rosettes mounting
- Material : polyamide
- Surface : high-gloss with textured surface for non-slip grip
- Version : left and right
- Colour : Manhattan
- Colours available : available in nylon colours
- Loading : max. 175 kg
