Cavere Care Adjustable mirror,
660 x 153 x 500 mm, Cavere Metallic anthracite
€718.00*
*Prices excl. VAT
Article number: 7466112095
Downloads
Technical Specifications

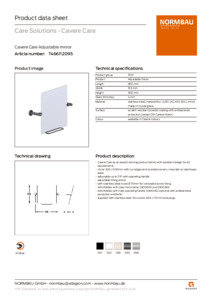

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere Care as an award-winning product family with excellent design for all requirements
- mirror 500 x 500mm with cut edges and rounded corners, mounted on steel base plate
- adjustable up to 25° with operating handle
- adjustable tilting action
- with stainless steel roses Ø 70mm for concealed screw fixing
- retrofittable with Care mirror lamp 0300669
- retrofittable with Care operating handle 0466450, optional with antibacterial protection 4466450
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Adjustable mirror
- Product group : 7010
- Length : 660 mm
- Width : 153 mm
- Height : 500 mm
- Glass thickness : 4 mm
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Material addition : mirror made of crystal glass
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Colour : Cavere Metallic anthracite
- Colours available : available in Cavere colours
