Cavere Care FlexRail,
L = 300 mm, Cavere White
€91.50*
*Prices excl. VAT
Article number: 7100001092
Downloads
Technical Specifications

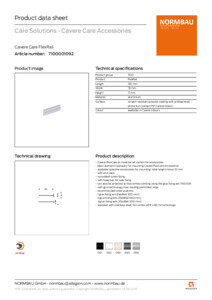

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Cavere FlexCare as modular rail system for accessories
- basic element necessary for mounting Cavere FlexCare Accessoires
- available spacefor accessoires for mounting: total lenght minus 10 mm
- with end caps
- concealed screw fixing
- with base bar, for wall fixing
- can also be attached to tiles without drilling using the glue fixing set 7100006
- with glue technology max. loading permitted: 4kgs
- recommended order quantity: 1 glue fixing set (FlexRail 300 mm) 2 glue fixing sets (FlexRail 660 mm) 3 glue fixing sets (FlexRail 900 mm)
- supplied with stainless steel Torx screw sØ 8 x 80 mm and plugs
- Product category : FlexRail
- Product group : 7010
- Length : 310 mm
- Width : 73 mm
- Height : 17 mm
- Material : aluminium
- Surface : scratch-resistant powder coating with antibacterial protection (except 091 Carbon black)
- Colour : Cavere White
- Colours available : available in Cavere colours
