Special Care PSY Shower curtain rail,
with curtain rings, I-shaped, L = 1000 mm, Dark grey
€189.00*
*Prices excl. VAT
Article number: 0788005018
Downloads
Technical Specifications

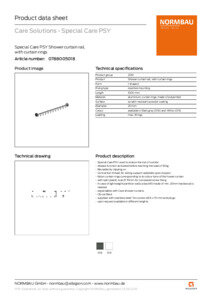

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Special Care PSY used to reduce the risk of suicide
- release function activated before reaching the load of 30kg
- Reusable by clipping on
- can be shortened (length)
- Connection thread for ceiling support available upon request
- Nylon curtain rings corresponding to to colour tone of the hower curtain
- with split plastic rose Ø 70mm for concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- expandable with Care shower curtains
- CE-certified
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- upon request available in different lenghts
- Product category : Shower curtain rail
- Product version : with curtain rings
- Product group : 2010
- Length L : 1000 mm
- Diameter : 20 mm
- Fixing type : rosettes mounting
- Form : I-shaped
- Material : aluminium
- Material addition : curtain rings made of polyamide
- Surface : scratch-resistant powder coating
- Colour : Dark grey
- Colours available : available in Dark grey (018) and White (019)
- Loading : max. 30 kg
