Special Care Adipositas Lift-up support rail, with floor support (750 mm), right, L = 850 mm, Dark grey
€879.00*
*Prices excl. VAT
Article number: 0457650018
- Special Care Adipositas for increased load-bearing requirements
- with adjustable brake
- with durable maintenance-free, friction bearings
- with non-corrosive steel core throughout
- floor support with non-slip floor contact
- Floor support serves as a support in case of insufficient wall condition, thus the resulting forces on the wall fixing can be reduced
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
- upon request available with E-Button
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up support rail
- Product version : with floor support
- Product group : 2010
- Length L : 850 mm
- Diameter : 34 mm
- Fixing height : 750 mm
- Material : polyamide
- Surface : high gloss
- Version : right
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 300 kg
Downloads
Technical Specifications

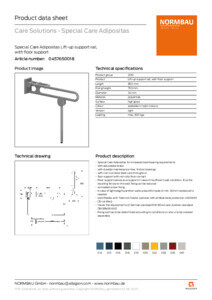

Product data sheet
