Verso Care Shower head rail,
600 mm, White, Antibac
€183.00*
*Prices excl. VAT
Article number: 4501211019
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with non-corrosive steel core throughout
- Shower head holder with easy adjustment to any height and angle, self-adjusting clamp maintenance-free
- side-mounted operating handle for one-handed operation by turning
- Shower head holder suitable for various hand shower types
- concealed screw fixing
- single-point wall attachment with 3mm tolerance compensation (= ± 1.5mm) for an easy and safe installation,
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- CE-certified
- supplied with stainless steel hexagon head screws Ø 6 x 100 mm according to DIN 571 and dowels
- Product category : Shower head rail
- Product group : 3800
- Axle dimension a1 : 600 mm
- Diameter : 34 mm
- Fixing points : 2 St.
- Fixing type : single-point mounting
- Material : polyamide
- Surface : high gloss with antibacterial protection
- Version : left and right
- Colour : White
- Colours available : available in colours Dark grey (018), White (019) and Manhattan (067)
- Loading : max. 125 kg
Downloads
Technical Specifications

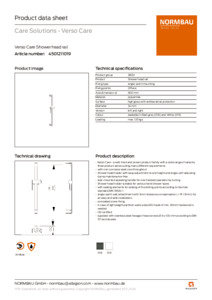

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
