Verso Care Duo Lift-up support rail vario,
with base plate, L = 850 mm, Red-White
€439.00*
*Prices excl. VAT
Article number: 3500450912
Downloads
Technical Specifications

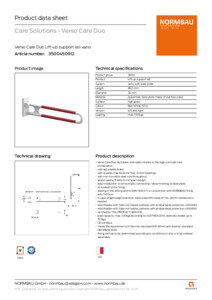

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Assembly image
Situational image
Overall download
ZIP file
- Verso Care Duo facilitates orientation thanks to the high-contrast color combination
- with adjustable brake
- with durable maintenance-free, friction bearings
- with non-corrosive steel core throughout
- easy installation or removing by connecting / disconnecting to base plate
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
- certified by TÜV PRODUCT SERVICE
- load capacity: max. 100kgs according to ISO17966:2016, statically tested up to 150kgs
- load capacity: max. 125kgs according to ISO17966:2016, statically tested up to 150kgs
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- in combination with Care shower guard rails 0787013 / 0787014 also can be used as shower guard rail
- Product category : Lift-up support rail
- Product group : 3800
- Base plate : with base plate
- Length L : 850 mm
- Diameter : 34 mm
- Material : polyamide
- Material addition : base plate made of stainless steel
- Surface : high gloss
- Version : left and right
- Colour : Red-White
- Loading : max. 100 kg
