Special Care PSY Shower curtain rail, with curtain rings, L-shaped, 900 x 900 mm, Dark grey

€281.00*

*Prices excl. VAT

Colour
Article number: 0788020018
  • Special Care PSY used to reduce the risk of suicide
  • release function activated before reaching the load of 30kg
  • Reusable by clipping on
  • can be shortened (length)
  • with connection thread for ceiling support, ceiling support has to be ordered separately.
  • Nylon curtain rings corresponding to to colour tone of the hower curtain
  • with split plastic rose Ø 70mm for concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • expandable with Care shower curtains
  • for the use of rose gaskets 0300901/0300910 geeignet
  • CE-certified
  • supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
  • upon request available in different lenghts
  • Product category : Shower curtain rail
  • Product version : with curtain rings
  • Product group : 2010
  • Axle dimension a1 : 900 mm
  • Axle dimension a2 : 900 mm
  • Diameter : 20 mm
  • Fixing type : rosettes mounting
  • Form : L-shaped
  • Material : aluminium
  • Material addition : curtain rings made of polyamide
  • Surface : scratch-resistant powder coating
  • Colour : Dark grey
  • Colours available : available in Dark grey (018) and White (019)
  • Loading : max. 30 kg

Downloads

Technical Specifications

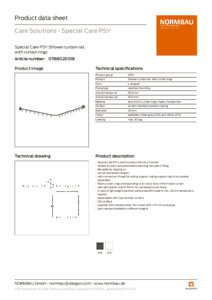

Product data sheet

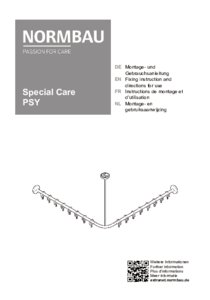

Fixing instruction and directions for use

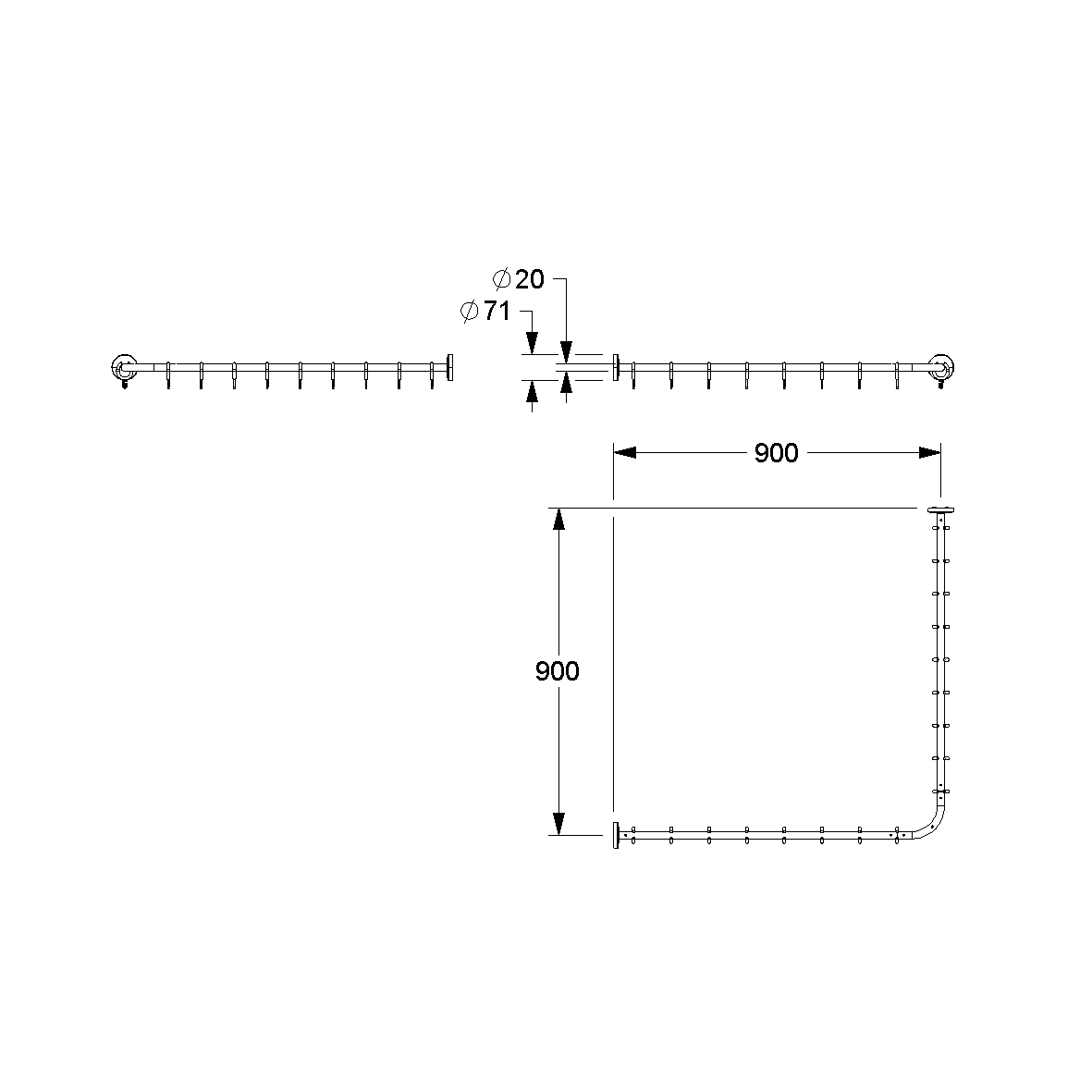

Technical Drawing

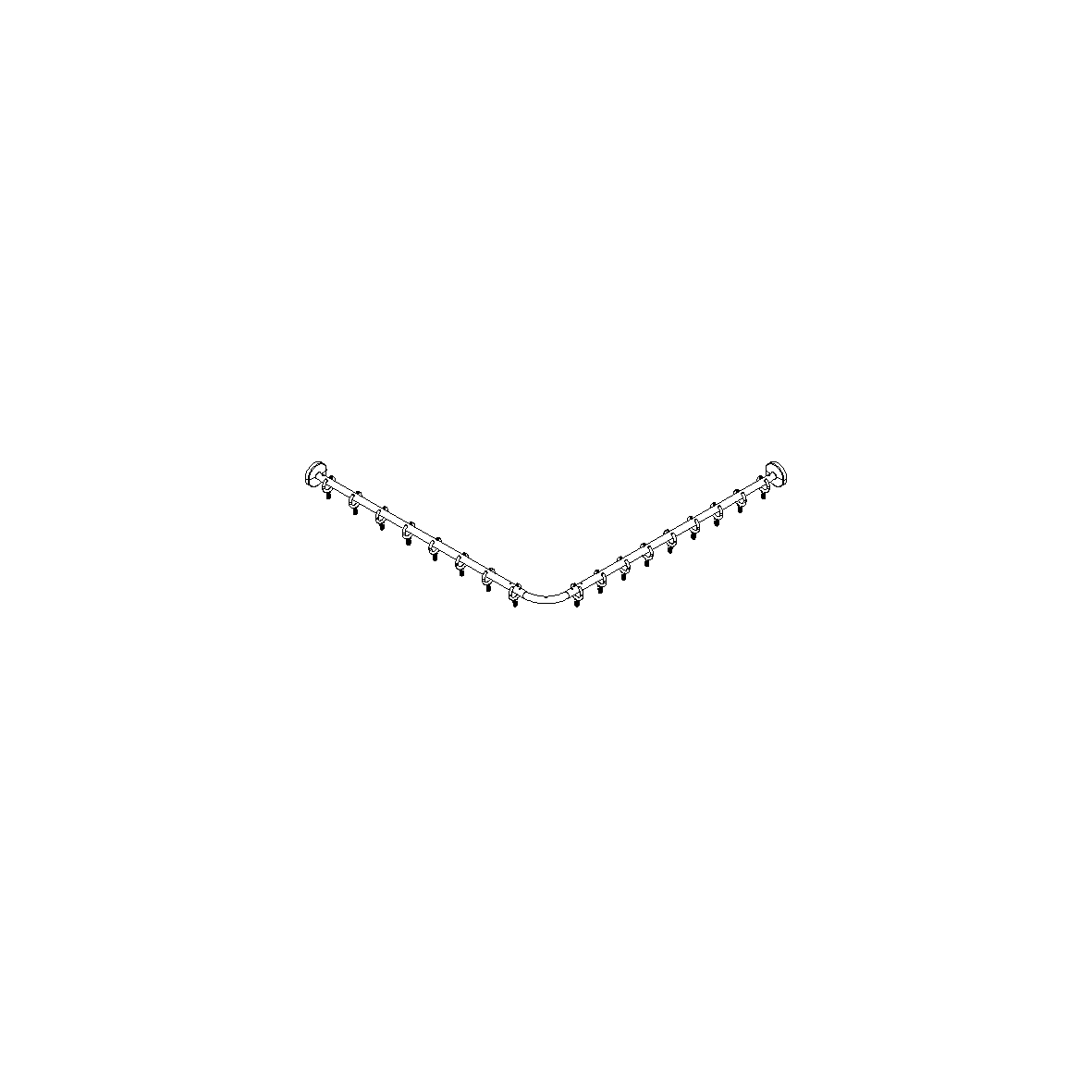

Isometric drawing

Images

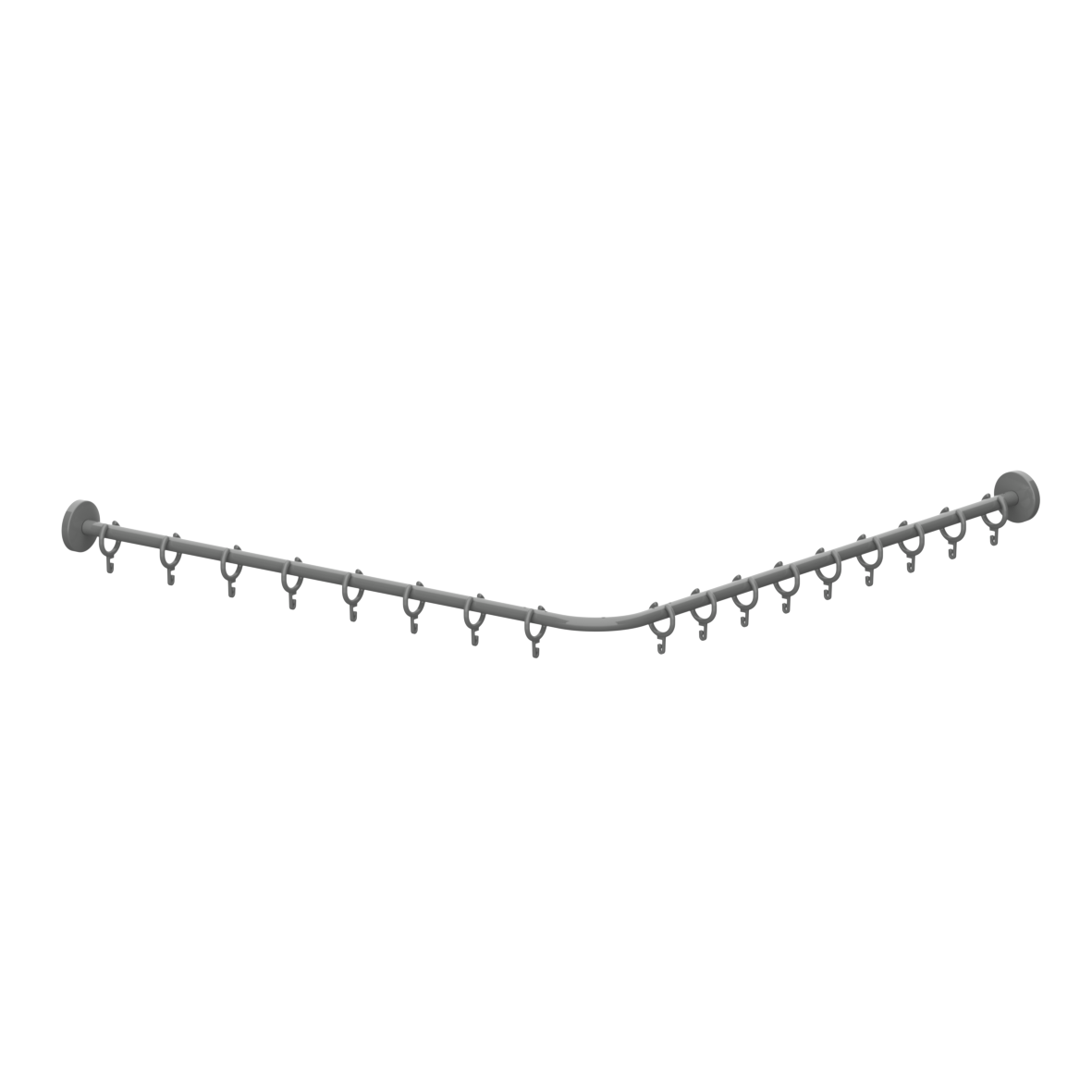

Product image

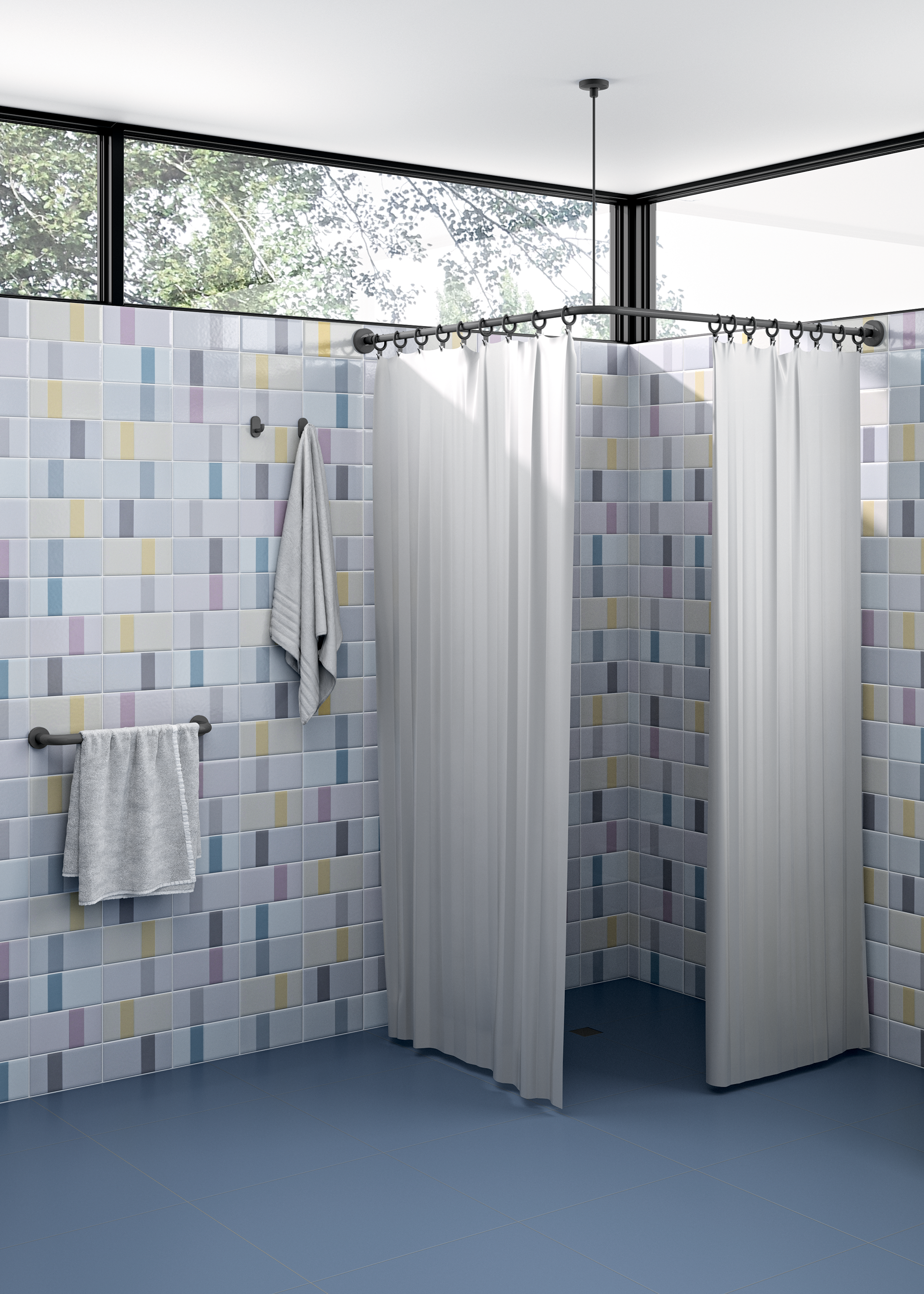

Situational image
Partial situational image

Overall download

ZIP file
