Special Care PSY Ceiling support,
L = 500 mm, Dark grey
€87.50*
*Prices excl. VAT
Article number: 0788001018
Downloads
Technical Specifications

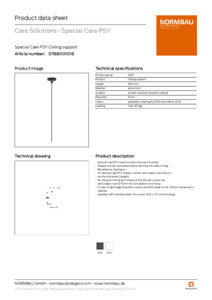

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Special Care PSY used to reduce the risk of suicide
- release function activated before reaching the load of 25kg
- Reusable by clipping on
- for Special Care PSY shower curtain rails made of aluminium
- can be shortened (length)
- for fixing on connection thread of the shower curtain rail
- with plastic rose Ø 70mm for concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Ceiling support
- Product group : 2010
- Length L : 500 mm
- Diameter : 6 mm
- Material : aluminium
- Surface : scratch-resistant powder coating
- Colour : Dark grey
- Colours available : available in Dark grey (018) and White (019)
- Loading : max. 30 kg
