Special Care Adipositas Lift-up shower seat,

with support feet, 534 x 467 x 498 mm, Dark grey

Downloads

Technical Specifications

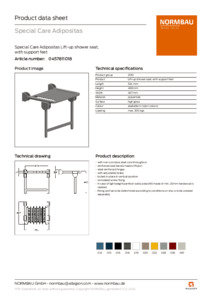

Product data sheet
Fixing instruction and directions for use
Technical Drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file
  • with non-corrosive steel core throughout
  • reinforced seat bands made of Nylon
  • steel reinforced hinges
  • with adjustable brake
  • locked in place in vertical position
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up shower seat
  • Product version : with support feet
  • Product group : 2010
  • Length : 534 mm
  • Width : 467 mm
  • Height : 498 mm
  • Wide seat surface : 508 mm
  • Depth of the seat surface : 383 mm
  • Material : polyamide
  • Surface : high gloss
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 300 kg

Tender specification

ausschreiben.de

Manufacturer

Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
