Nylon Care Lift-up support rail vario,

with base plate, with floor support (800 mm), L = 725 mm, Dark red

€561.00*

*Prices excl. VAT

Colour
Article number: 3500830035
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • with adjustable brake
  • with durable maintenance-free, friction bearings
  • with non-corrosive steel core throughout
  • floor support with non-slip floor contact
  • easy installation or removing by connecting / disconnecting to base plate
  • Floor support serves as a support in case of insufficient wall condition, thus the resulting forces on the wall fixing can be reduced
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • retrofittable with Toilet roll holder, optional with antibacterial protection 4300665
  • retrofittable with remote control 0449010
  • certified by TÜV PRODUCT SERVICE
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up support rail
  • Product version : with floor support
  • Product group : 3800
  • Base plate : with base plate
  • Length L : 725 mm
  • Diameter : 34 mm
  • Fixing height : 800 mm
  • Material : polyamide
  • Material addition : base plate, made of stainless steel
  • Surface : high gloss
  • Version : left and right
  • Colour : Dark red
  • Colours available : available in nylon colours
  • Loading : max. 100 kg

Downloads

Technical Specifications

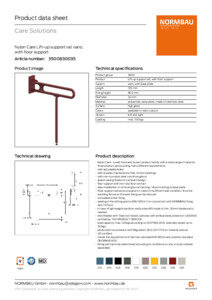

Product data sheet
Fixing instruction and directions for use

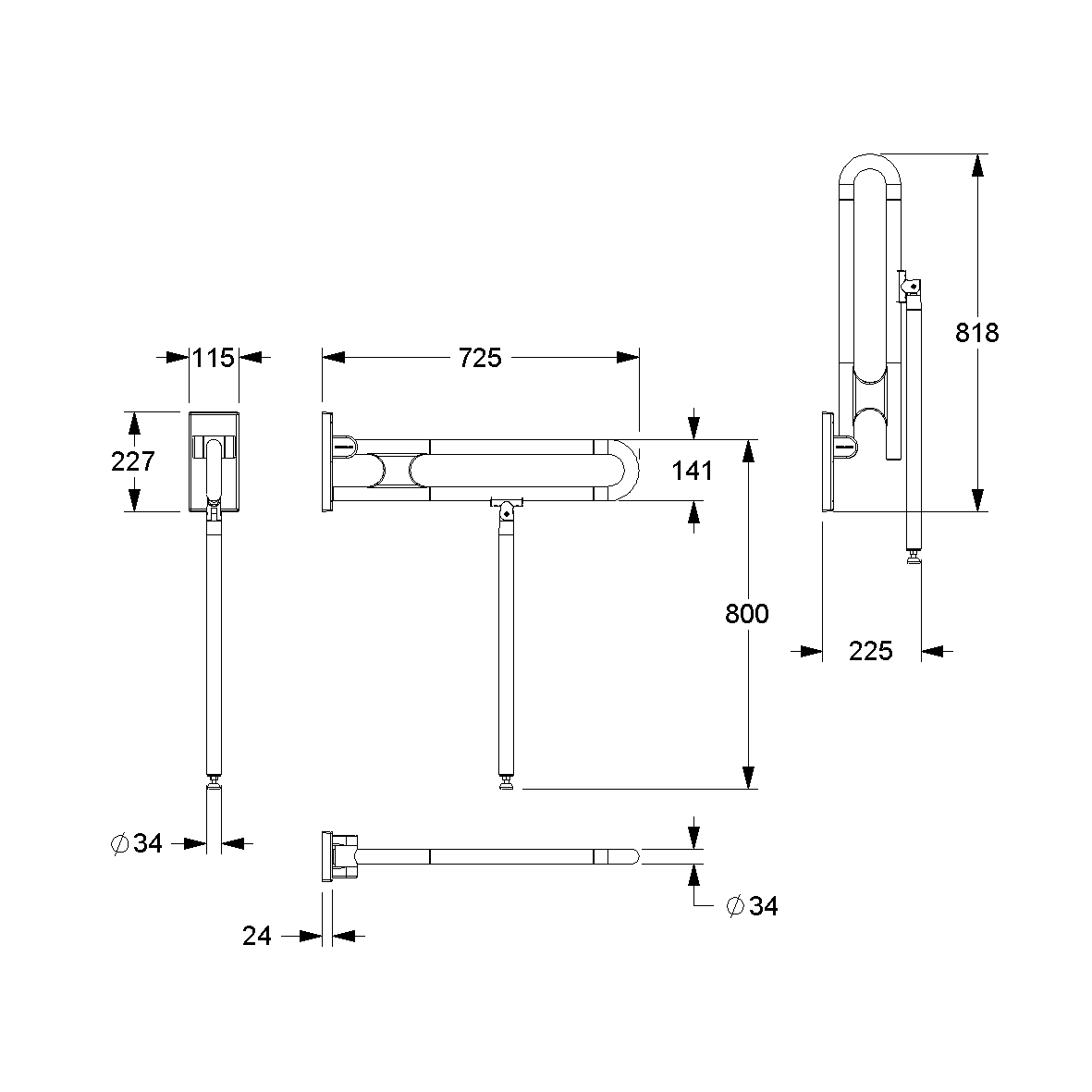

Technical Drawing

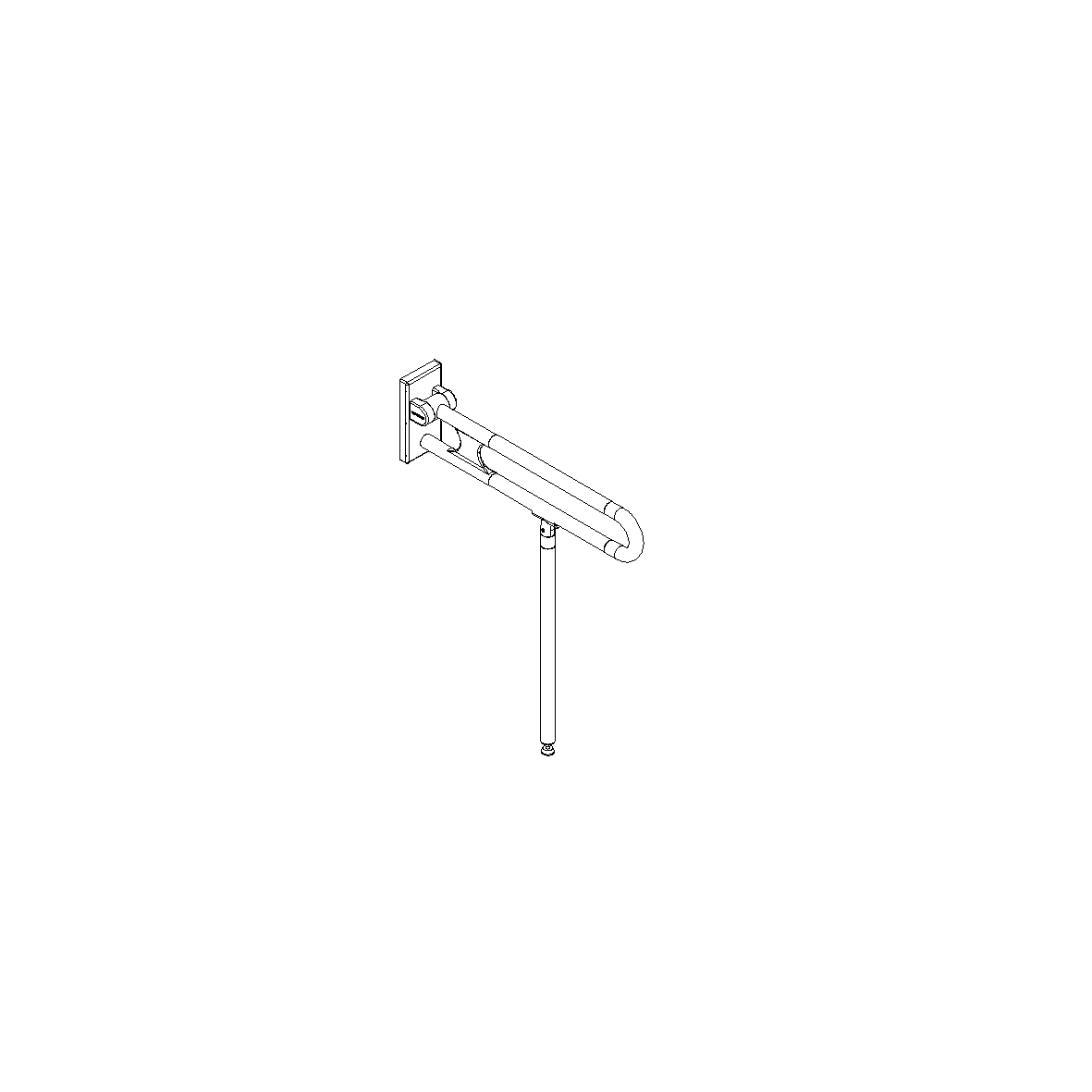

Isometric drawing

Images

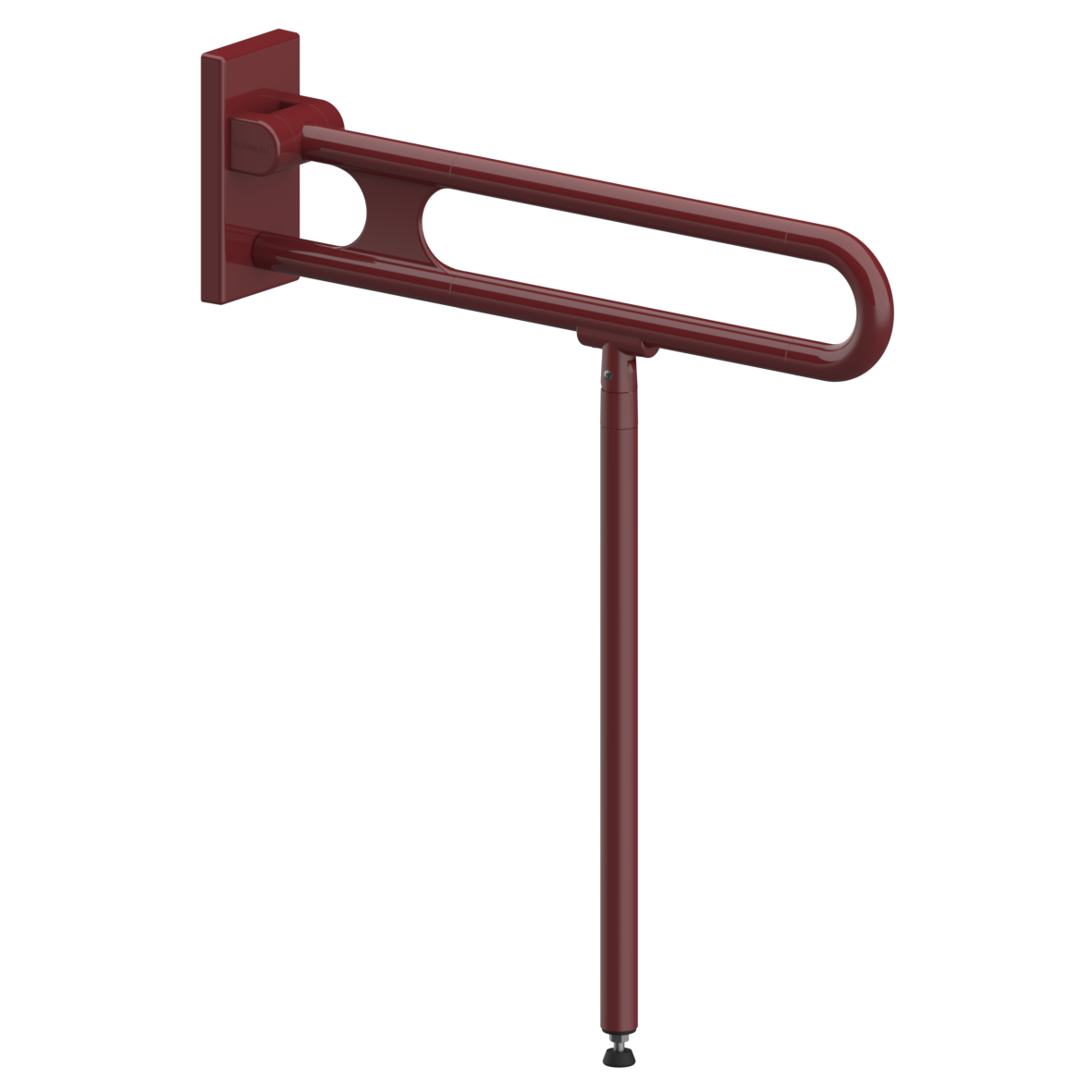

Product image

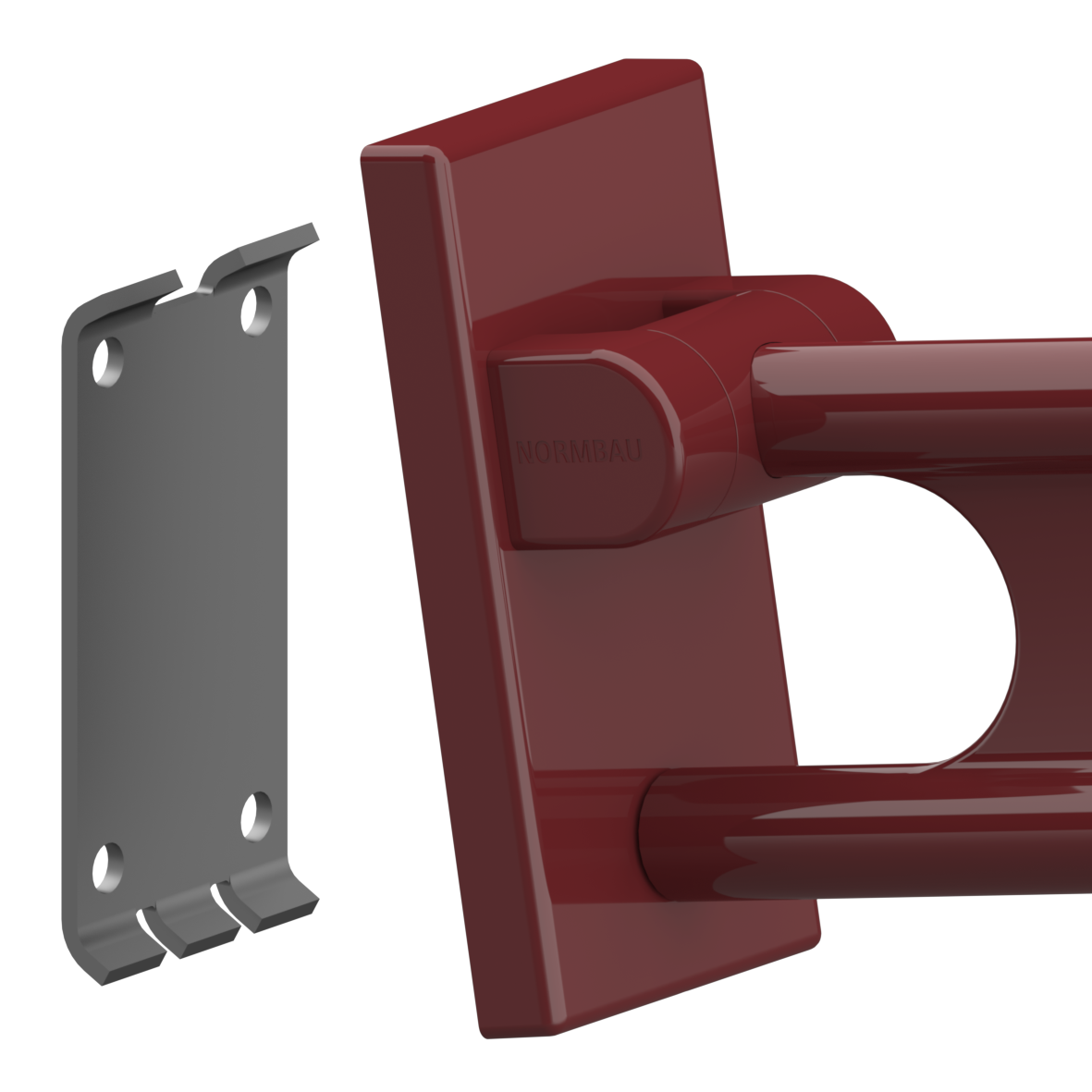

Assembly image
Situational image
Partial situational image

Overall download

ZIP file

Brochures & Catalogs

NORMBAU website
