Nylon Care Lift-up support rail vario, with base plate, with Toilet roll holder, L = 850 mm, Dark grey

€468.00*

*Prices excl. VAT

Colour
Article number: 3500650018
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • with adjustable brake
  • with durable maintenance-free, friction bearings
  • with non-corrosive steel core throughout
  • with paper roll holder with maintenance free roll brake
  • easy installation or removing by connecting / disconnecting to base plate
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • retrofittable with remote control 0449010
  • certified by TÜV PRODUCT SERVICE
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up support rail
  • Product version : with Toilet roll holder
  • Product group : 3800
  • Base plate : with base plate
  • Length L : 850 mm
  • Diameter : 34 mm
  • Material : polyamide
  • Material addition : base plate, made of stainless steel
  • Surface : high gloss
  • Version : left and right
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 100 kg

Downloads

Technical Specifications

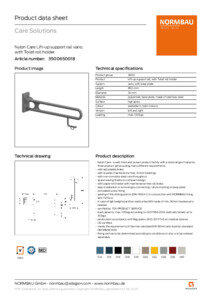

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file

Brochures & Catalogs

NORMBAU website
