Nylon Care Base plate vario,
with cover plate blind, 227 x 115 x 24 mm, Dark grey
€91.50*
*Prices excl. VAT
Article number: 3501200018
Downloads
Technical Specifications

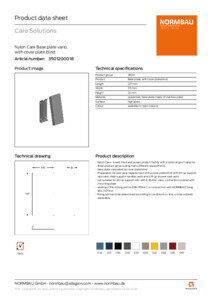

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- base plate concealed by cover plate blind
- Preparation for later easy replacement of the cover plate blind with lift-up support rails vario, Wall-support handles vario and Lift-up shower seat vario
- not suitable for lift-up support rails with E-Button vario, connection covered with mounting plate
- sealing of the drilling points (DIN 18534-1) in conjunction with NORMBAU fixing sets 7470xxx
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Base plate
- Product version : with cover plate blind
- Product group : 3800
- Length : 227 mm
- Width : 115 mm
- Height : 24 mm
- Material : polyamide
- Material addition : base plate made of stainless steel
- Surface : high gloss
- Colour : Dark grey
- Colours available : available in nylon colours
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
Manufacturer
Normbau GmbH
Schwarzwaldstraße 15
77871 Renchen
Germany
