Nylon Care 400 Shower curtain rail, with curtain rings, U-shaped, 800 x 800 mm, Dark grey
€413.00*
*Prices excl. VAT
Article number: 0782310018
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with two connection threads for ceiling supports, ceiling supports have to be ordered separately
- Nylon curtain rings corresponding to to colour tone of the hower curtain
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- expandable with Care shower curtains
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- upon request available in different lenghts
- Product category : Shower curtain rail
- Product version : with curtain rings
- Product group : 1500
- Axle dimension a1 : 800 mm
- Axle dimension a2 : 800 mm
- Diameter : 34 mm
- Form : U-shaped
- Curtain rings : 25 St.
- Material : polyamide
- Surface : high gloss with antibacterial protection
- Colour : Dark grey
- Colours available : available in nylon colours
Downloads
Technical Specifications

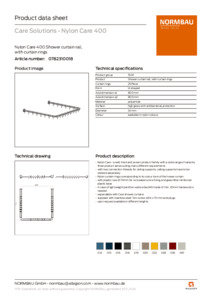

Product data sheet

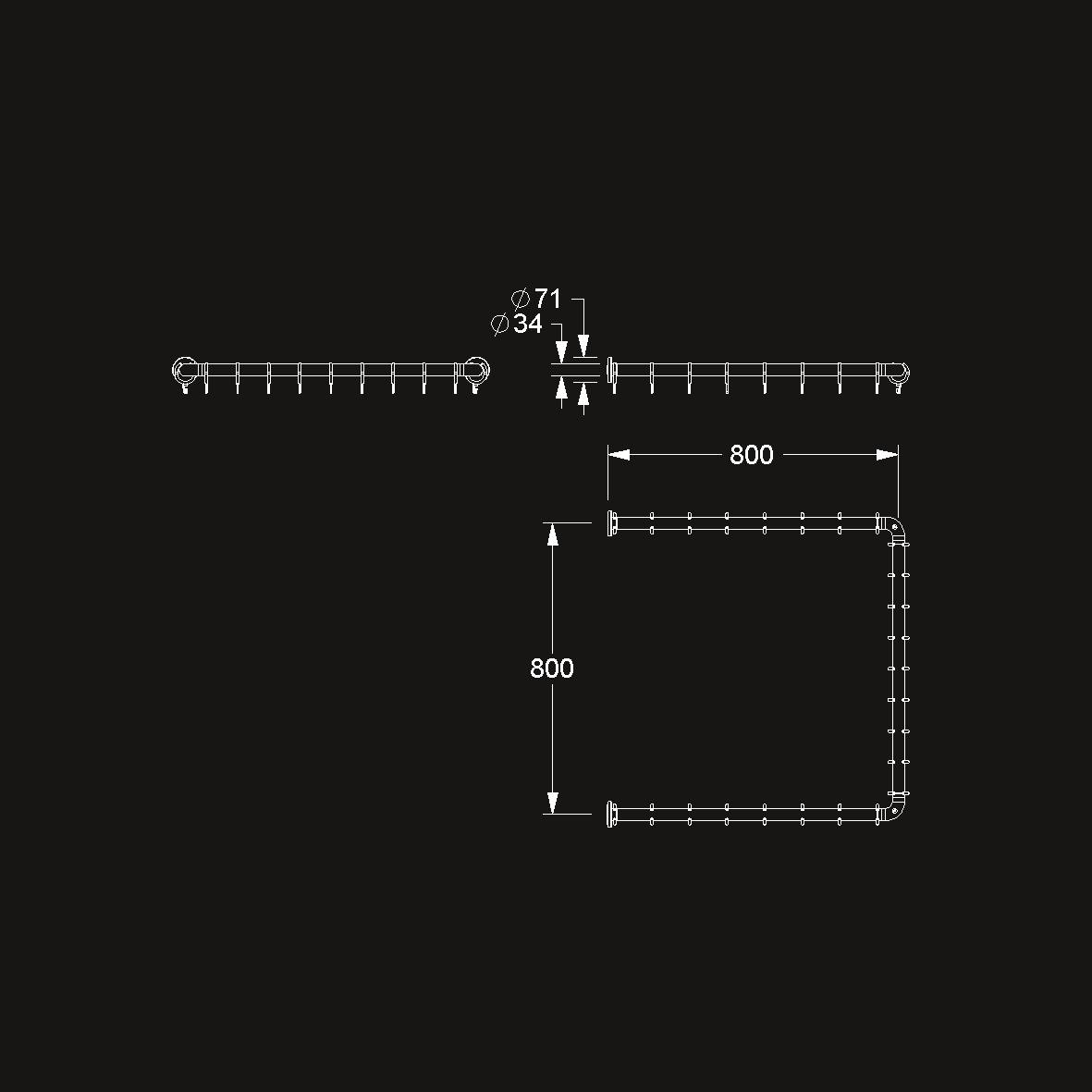

Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
