Nylon Care 400 Ceiling support,
L = 401 - 500 mm, Dark grey
€67.50*
*Prices excl. VAT
Article number: 0781120018
Downloads
Technical Specifications

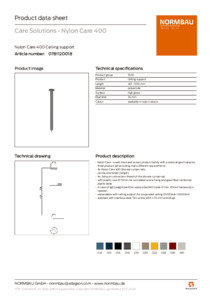

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Images
Product image
Situational image
Partial situational image
Overall download
ZIP file
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- for Nylon Care 400 Shower curtain rails
- can be shortened (length)
- for fixing on connection thread of the shower curtain rail
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- expandable with ceiling support for suspended ceiling 0300348 / 0300349
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- Product category : Ceiling support
- Product group : 1500
- Length L : 401 - 500 mm
- Diameter : 34 mm
- Material : polyamide
- Surface : high gloss
- Colour : Dark grey
- Colours available : available in nylon colours
