Nylon Care 400 Shower curtain rail,
with curtain rings, L-shaped, 800 x 800 mm, Dark grey
€275.00*
*Prices excl. VAT
Article number: 0781010018
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with connection thread for ceiling support, ceiling support has to be ordered separately.
- Nylon curtain rings corresponding to to colour tone of the hower curtain
- with plastic rose Ø 70mm for concealed screw fixing and glass fiber reinforced plastic base
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- expandable with Care shower curtains
- supplied with stainless steel Torx screw sØ 6 x 70 mm and plugs
- upon request available in different lenghts
- Product category : Shower curtain rail
- Product version : with curtain rings
- Product group : 1500
- Axle dimension a1 : 800 mm
- Axle dimension a2 : 800 mm
- Diameter : 34 mm
- Form : L-shaped
- Curtain rings : 16 St.
- Material : polyamide
- Surface : high gloss with antibacterial protection
- Colour : Dark grey
- Colours available : available in nylon colours
Downloads
Technical Specifications

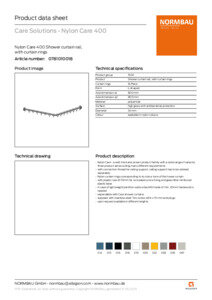

Product data sheet

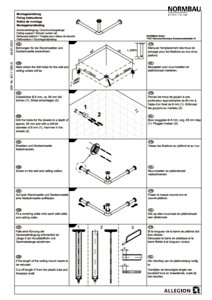

Fixing instruction and directions for use

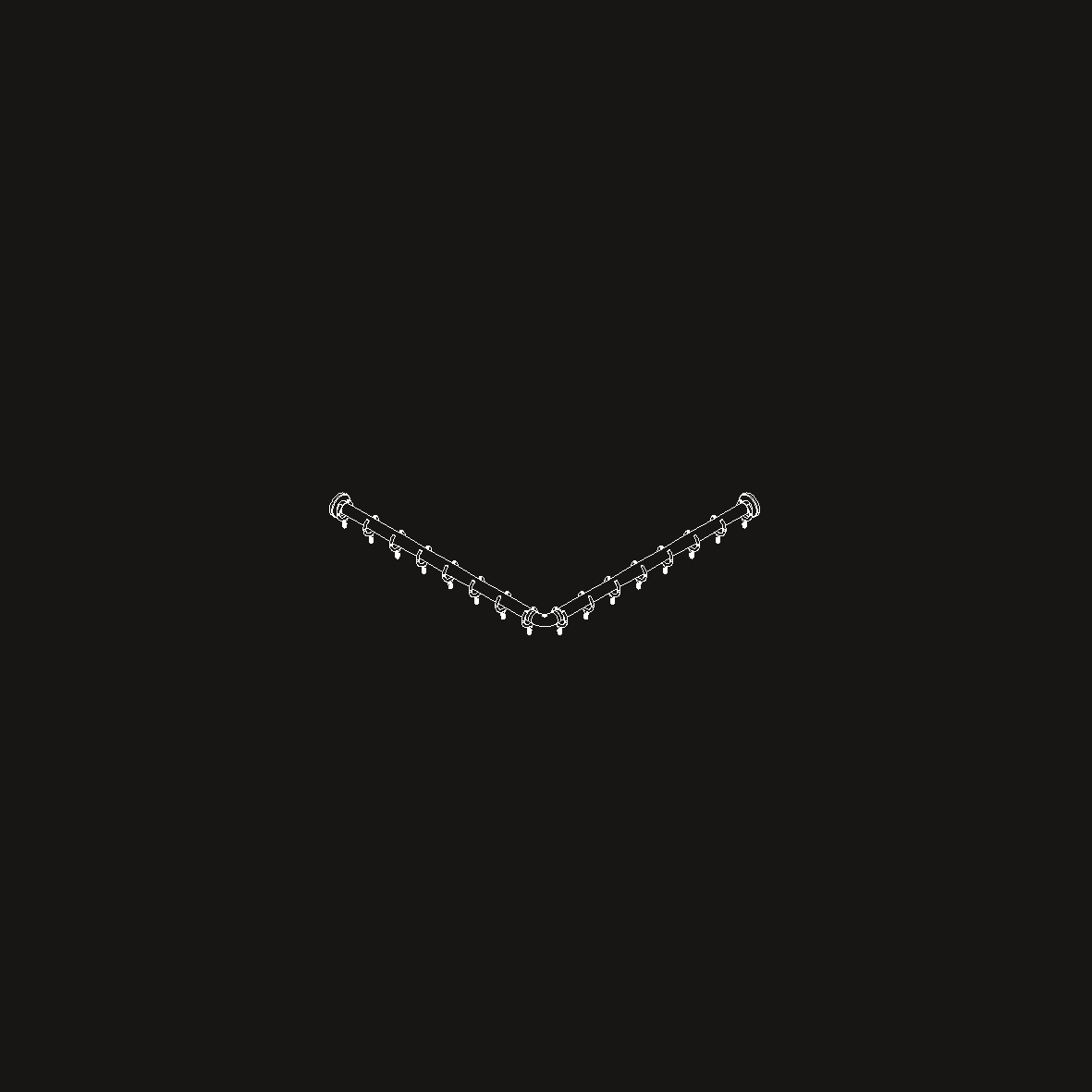

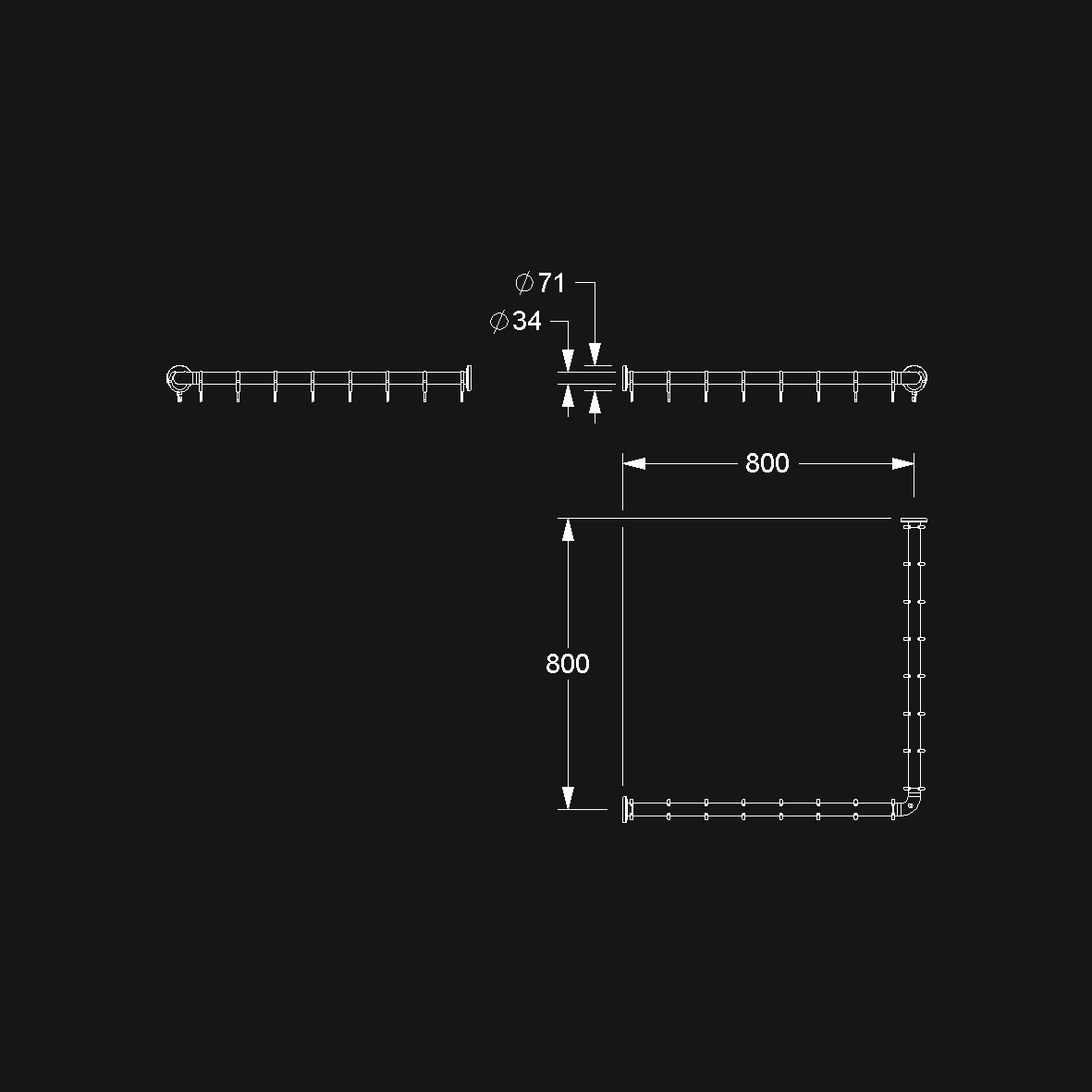

Technical Drawing
Images

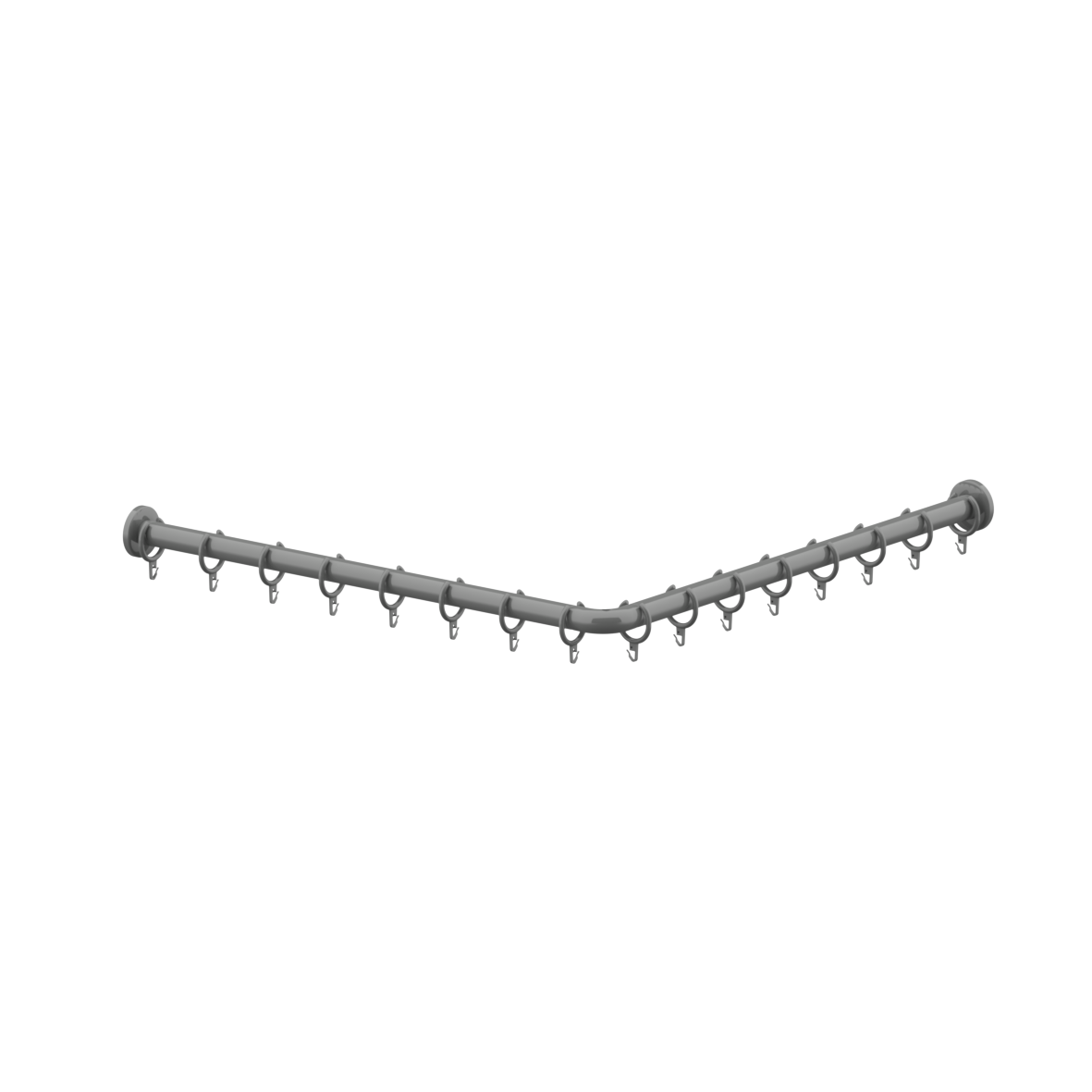

Product image
Situational image
Partial situational image
Overall download
ZIP file
Tender specification
