Nylon Care 400 Lift-up support rail,

with one bar, L = 850 mm, Dark grey

€460.00*

*Prices excl. VAT

Colour
Article number: 0437050018
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • with adjustable brake
  • with durable maintenance-free, friction bearings
  • with non-corrosive steel core throughout
  • spring-loaded mechanism, smooth-running folding
  • with steel reinforced mounting plate for three-point fixing and Nylon cover
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up support rail
  • Product version : with one bar
  • Product group : 2000
  • Length L : 850 mm
  • Diameter : 34 mm
  • Material : polyamide
  • Surface : high-gloss with textured surface for non-slip grip
  • Version : left and right
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 100 kg

Downloads

Technical Specifications

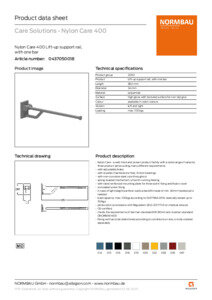

Product data sheet
Fixing instruction and directions for use

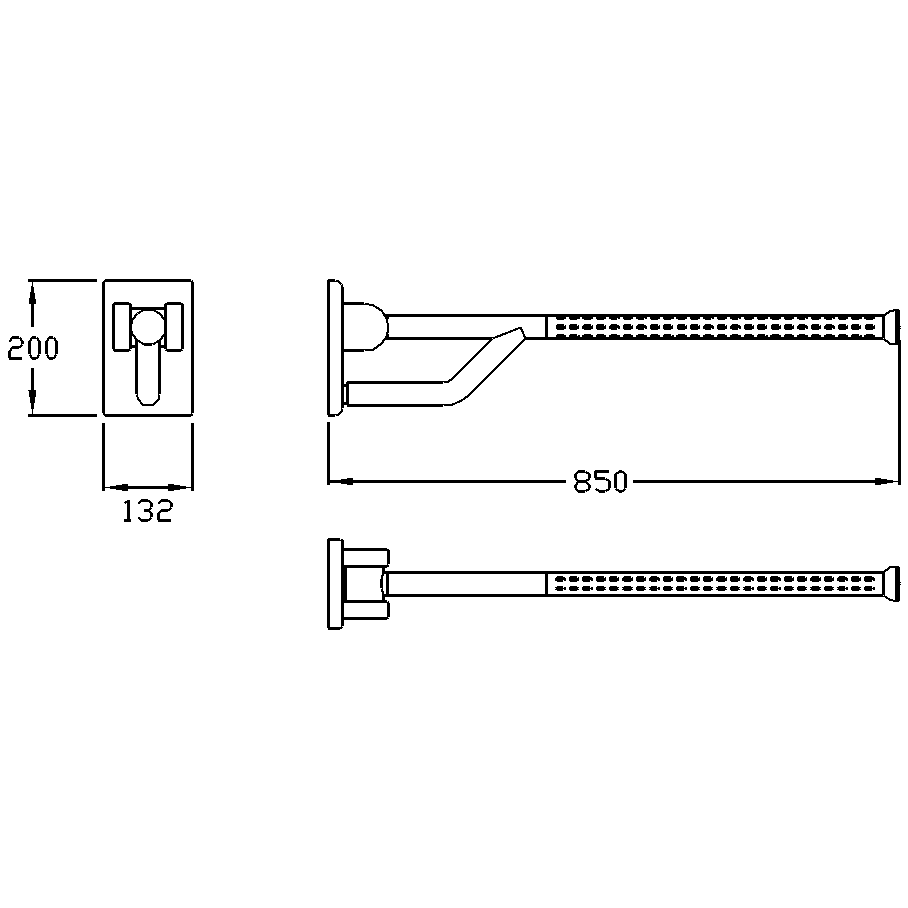

Technical Drawing

Images

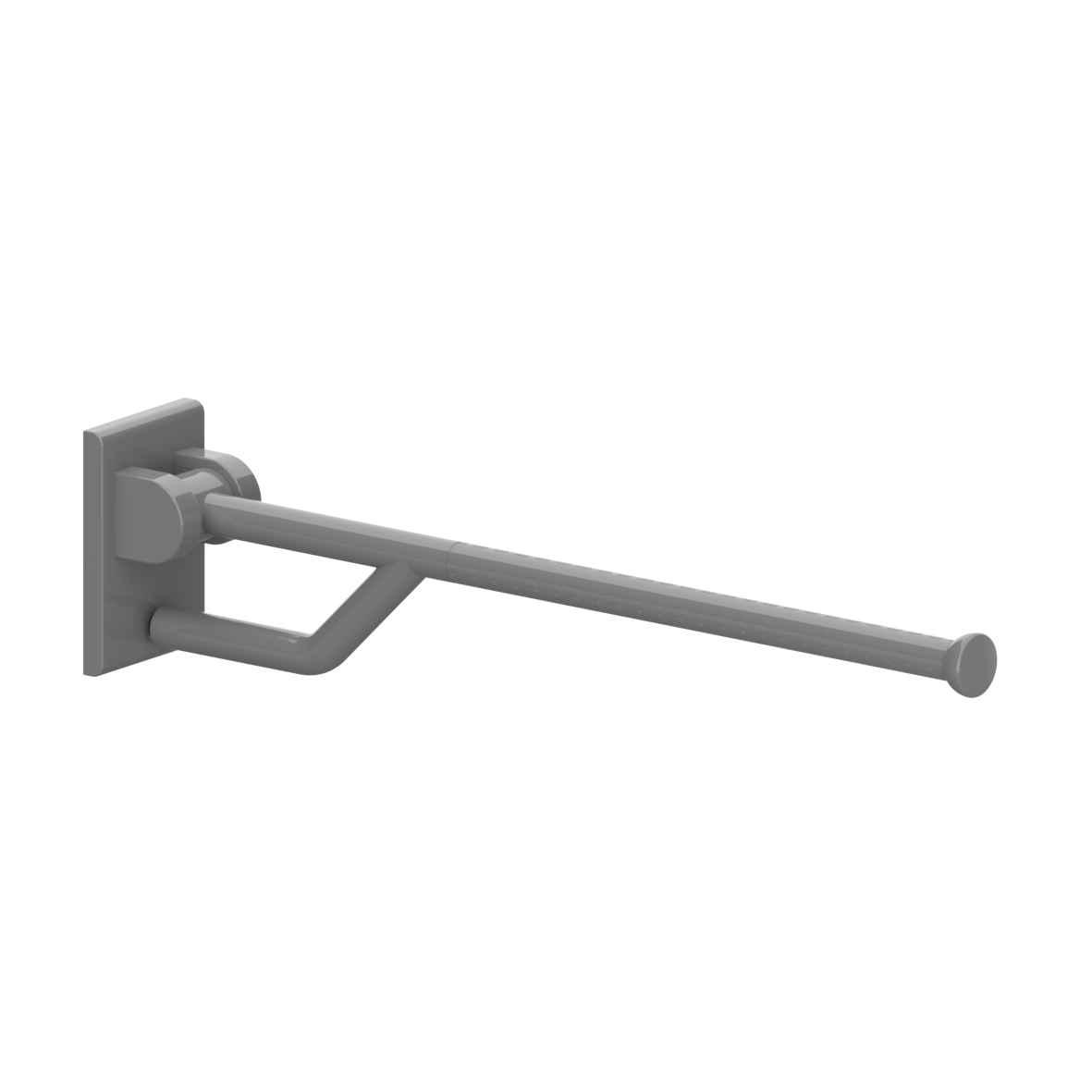

Product image
Situational image
Partial situational image

Overall download

ZIP file

Brochures & Catalogs

NORMBAU website
