Nylon Care 400 Lift-up support rail,
L = 850 mm, Dark grey
€572.00*
*Prices excl. VAT
Article number: 0447050018
- Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
- with adjustable brake
- with durable maintenance-free, friction bearings
- with non-corrosive steel core throughout
- spring-loaded mechanism, smooth-running folding
- with steel reinforced mounting plate for three-point fixing and Nylon cover
- concealed screw fixing
- In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
- certified by TÜV PRODUCT SERVICE
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up support rail
- Product group : 2000
- Length L : 850 mm
- Diameter : 34 mm
- Material : polyamide
- Surface : high-gloss with textured surface for non-slip grip
- Version : left and right
- Colour : Dark grey
- Colours available : available in nylon colours
- Loading : max. 125 kg
Downloads
Technical Specifications

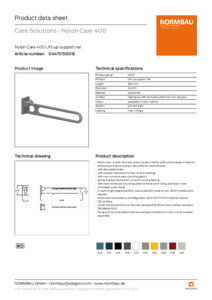

Product data sheet

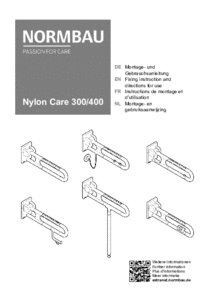

Fixing instruction and directions for use

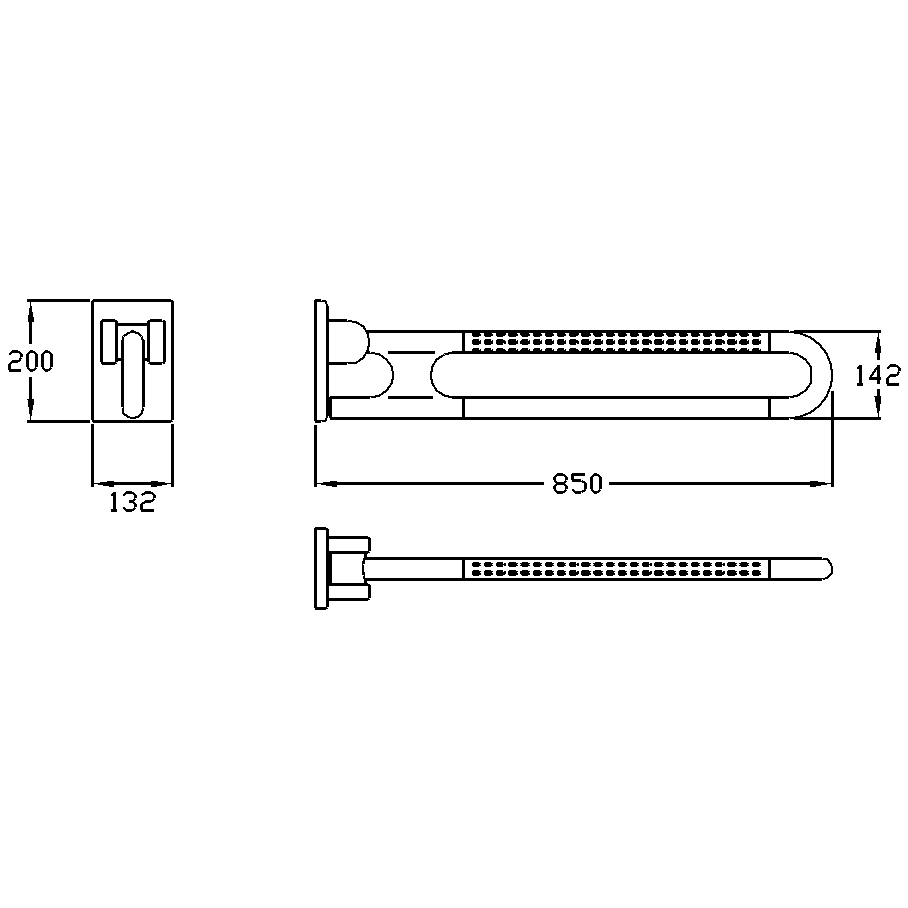

Technical Drawing
Images

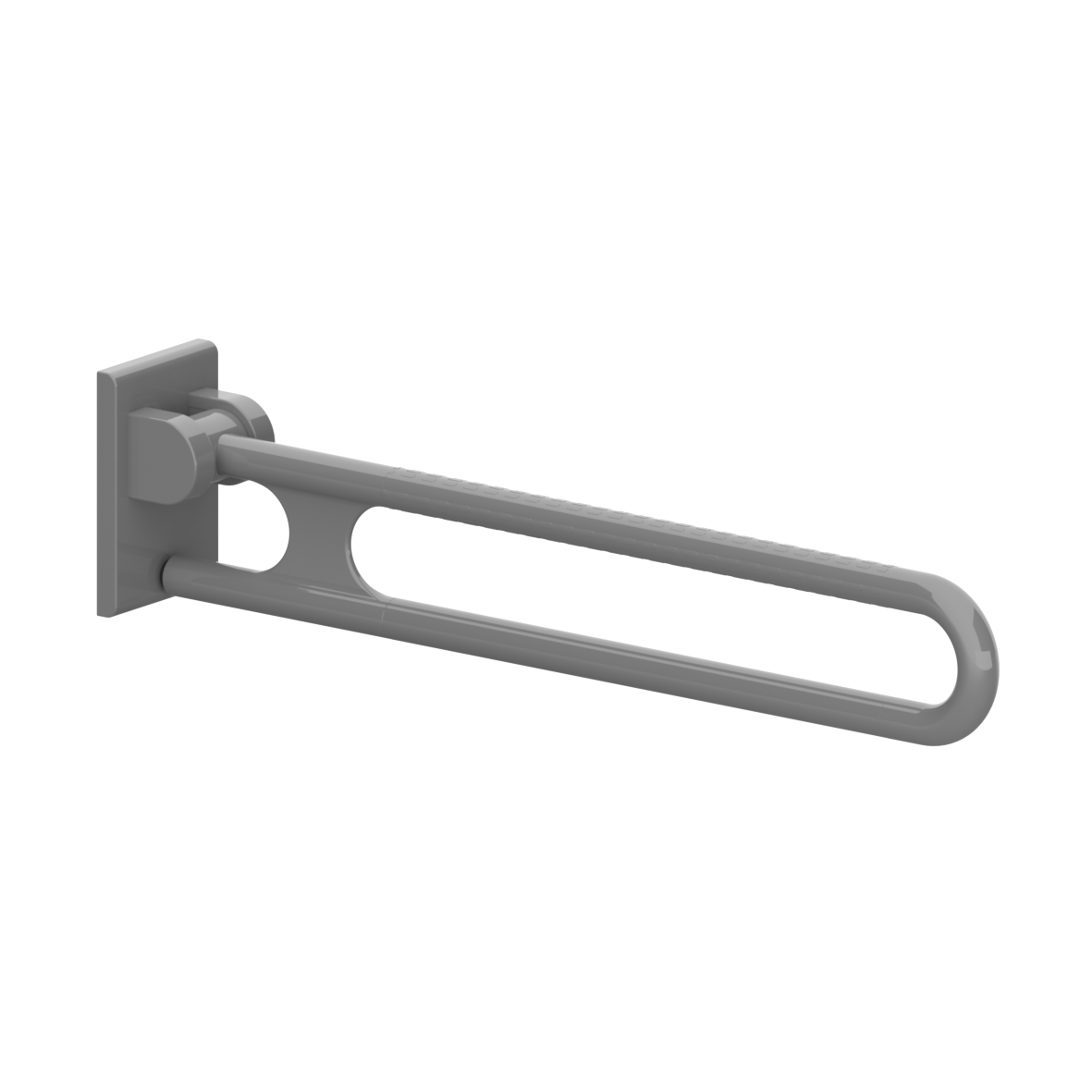

Product image
Situational image
Partial situational image
Overall download
ZIP file
Tender specification
ausschreiben.de
Brochures & Catalogs
NORMBAU website
