Nylon Care 300 Lift-up support rail, with toilet roll holder and floor support (750 mm), L = 850 mm, Dark grey

€634.00*

*Prices excl. VAT

Colour
Article number: 0300457018
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • with adjustable brake
  • with durable maintenance-free, friction bearings
  • with non-corrosive steel core throughout
  • floor support with non-slip floor contact
  • with paper roll holder with maintenance free roll brake
  • with steel reinforced mounting plate for three-point fixing and Nylon cover
  • Floor support serves as a support in case of insufficient wall condition, thus the resulting forces on the wall fixing can be reduced
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • retrofittable with remote control 0449010
  • certified by TÜV PRODUCT SERVICE
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up support rail
  • Product version : with toilet roll holder and floor support
  • Product group : 0700
  • Length L : 850 mm
  • Diameter : 34 mm
  • Fixing height : 750 mm
  • Material : polyamide
  • Surface : high gloss
  • Version : left and right
  • Colour : Dark grey
  • Colours available : available in nylon colours
  • Loading : max. 100 kg

Downloads

Technical Specifications

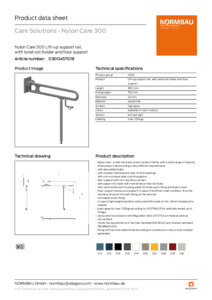

Product data sheet
