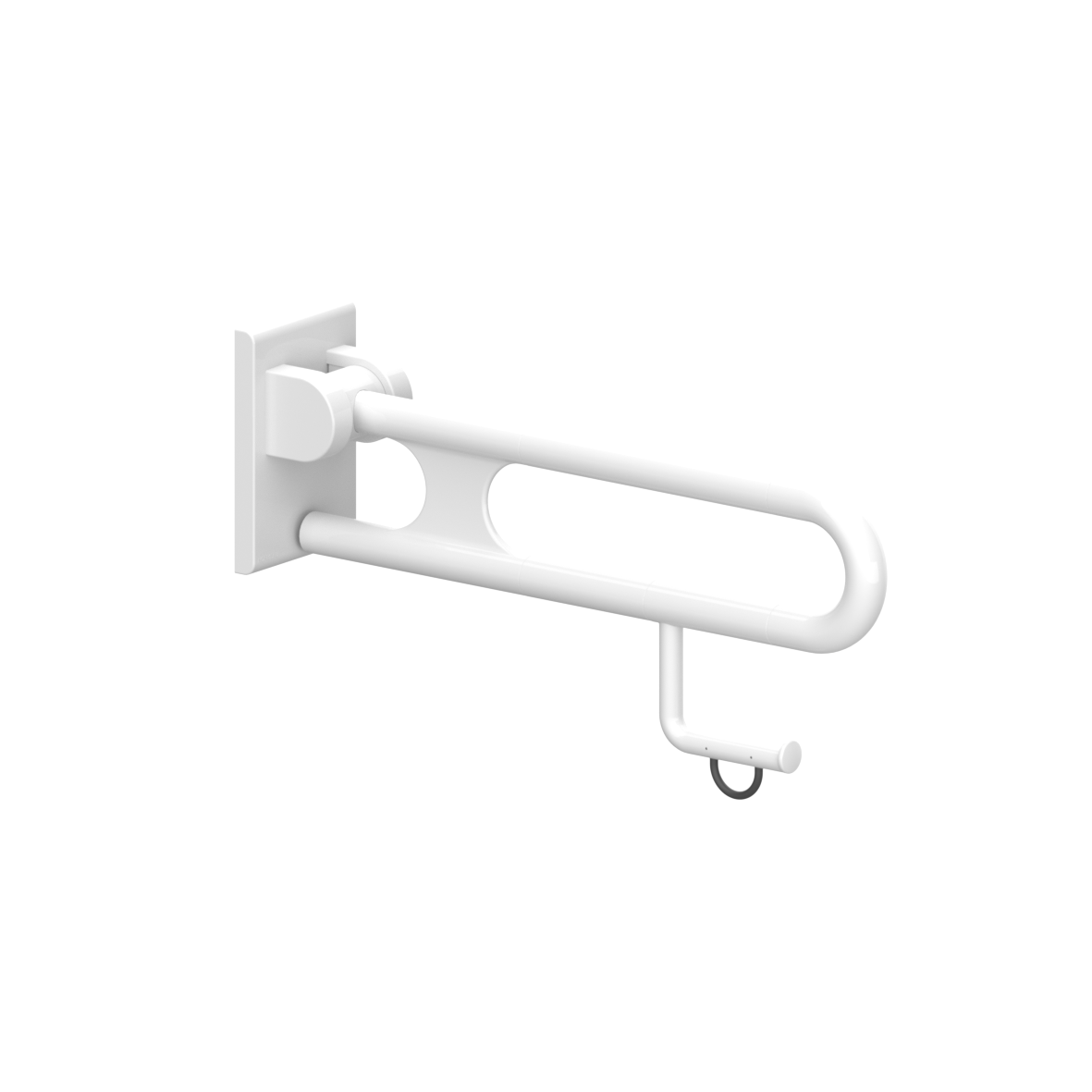

Nylon Care 300 Lift-up support rail,

with Toilet roll holder, L = 600 mm, White

Downloads

Technical Specifications

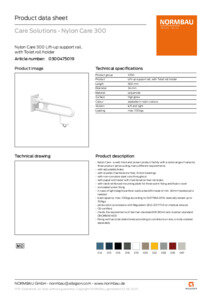

Product data sheet

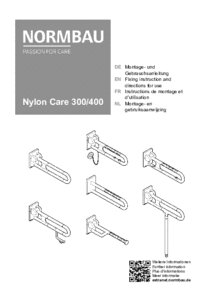

Fixing instruction and directions for use
Technical Drawing

Images

Product image
Situational image
Partial situational image

Overall download

ZIP file
  • Nylon Care - a well-tried and proven product family with a wide range of variants, three product series suiting many different requirements
  • with adjustable brake
  • with durable maintenance-free, friction bearings
  • with non-corrosive steel core throughout
  • with paper roll holder with maintenance free roll brake
  • with steel reinforced mounting plate for three-point fixing and Nylon cover
  • concealed screw fixing
  • In case of lightweight partition walls a backfill made of min. 20mm hardwood is needed
  • retrofittable with remote control 0449010
  • certified by TÜV PRODUCT SERVICE
  • load capacity: max. 100kgs according to ISO17966:2016, statically tested up to 150kgs
  • produced in accordance with Regulation (EU) 2017/745 on medical devices
  • CE-certified
  • meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
  • Fixing set has to be determined according to conditions on site, is to be ordered separately
  • Product category : Lift-up support rail
  • Product version : with Toilet roll holder
  • Product group : 0700
  • Length L : 600 mm
  • Diameter : 34 mm
  • Material : polyamide
  • Surface : high gloss
  • Version : left and right
  • Colour : White
  • Colours available : available in nylon colours
  • Loading : max. 100 kg

Tender specification

ausschreiben.de

MS

Care Mounting plate, for fixing in front of the wall with panels and lightweight partition walls (without backfill), for Nylon Care 300 and Nylon Care 400, 200 x 15 x 850 mm, Cavere White
Care Mounting plate,
for fixing in front of the wall with panels and lightweight partition walls (without backfill), for Nylon Care 300 and Nylon Care 400, 200 x 15 x 850 mm, Cavere White

€350.00*
Care Fixing set MS 4.9 A 3, for fixing in front of the wall with panels (with backfill for mounting plate made of steel), Colourless
Care Fixing set MS 4.9 A 3,
for fixing in front of the wall with panels (with backfill for mounting plate made of steel), Colourless

€17.00*
Care Fixing set MS 4.9 F 3, for fixing on brickwork made of full brick, Colourless
Care Fixing set MS 4.9 F 3,
for fixing on brickwork made of full brick, Colourless

€25.50*
Care Fixing set MS 4.9 C 3, for fixing in front of the wall with panels and lightweight partition walls (with backfill), Colourless
Care Fixing set MS 4.9 C 3,
for fixing in front of the wall with panels and lightweight partition walls (with backfill), Colourless

€19.50*
Care Fixing set MS 4.9 H 3, for fixing on brickwork made of perforated brick (without injectionscartridge), Colourless
Care Fixing set MS 4.9 H 3,
for fixing on brickwork made of perforated brick (without injectionscartridge), Colourless

€56.50*
Care Fixing set MS 4.9 H 13, for fixing on brickwork made of perforated brick (with injectionscartridge), Colourless
Care Fixing set MS 4.9 H 13,
for fixing on brickwork made of perforated brick (with injectionscartridge), Colourless

€87.00*

PALT

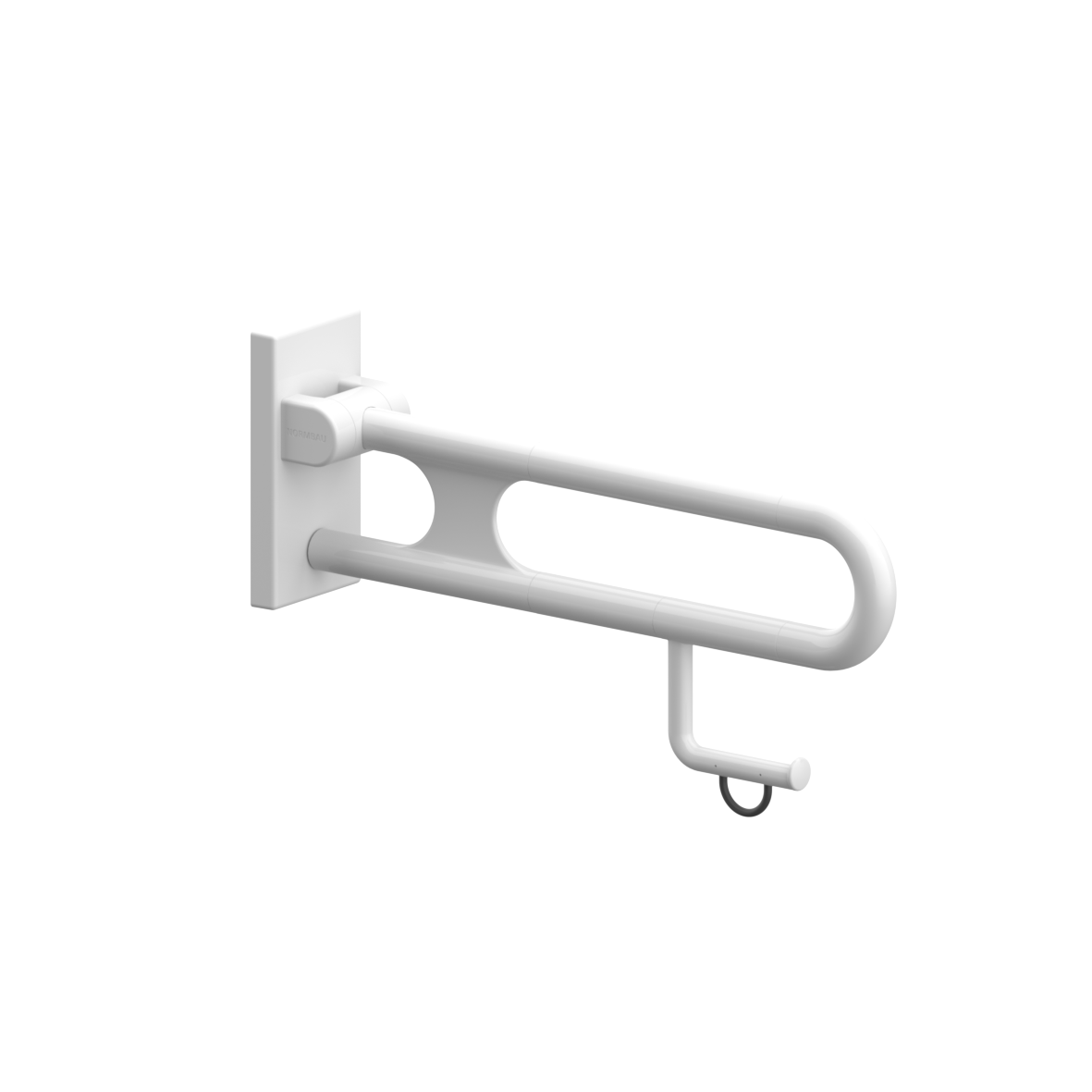

Nylon Care Lift-up support rail vario, with base plate, with Toilet roll holder, L = 600 mm, White
