Inox Care Lift-up support rail vario,
with base plate, with remote control, right, L = 850 mm, Mirror polished
€1,031.00*
*Prices excl. VAT
Article number: 2050284008
Downloads
Technical Specifications

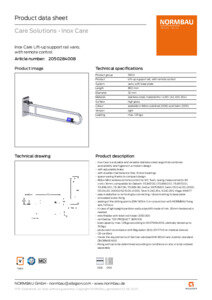

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Assembly image
Situational image
Partial situational image
Overall download
ZIP file
- Inox Care is a durable and versatile stainless steel range that combines accessibility and hygiene in a modern design
- with adjustable brake
- with durable maintenance-free, friction bearings
- 868,4 MHz wireless remote control for WC flush, casing measurements: 85 x 46 x 16mm, compatible for Geberit: 115.867.00.1,115.869.00.1, 115.897.00.1, 115.898.00.1, 115.867.SN, 115.869.SN, Grohe: 38759SD0, Sanit: 05.042.00..0000, 05.014.00..0000,05.015.00..0000, Tece: 9.240.354, 9.240.355, Viega: 696177
- easy installation or removing by connecting / disconnecting to base plate
- concealed screw fixing
- sealing of the drilling points (DIN 18534-1) in conjunction with NORMBAU fixing sets 7470xxx
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- retrofittable with toilet roll holder 2050300
- certified by TÜV PRODUCT SERVICE
- load capacity: max. 125kgs according to ISO17966:2016, statically tested up to 150kgs
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- Product category : Lift-up support rail
- Product version : with remote control
- Product group : 5500
- Base plate : with base plate
- Length L : 850 mm
- Diameter : 32 mm
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Surface : high gloss
- Version : right
- Colour : Mirror polished
- Colours available : available in Mirror polished (008) and Satin (009)
- Loading : max. 125 kg
