Inox Care Lift-up support rail vario,
with base plate, with 2 E-buttons (WC and call: NOC and NCC), L = 850 mm, connection covered with mounting plate, Mirror polished
€1,039.00*
*Prices excl. VAT
Article number: 2052885008
Downloads
Technical Specifications

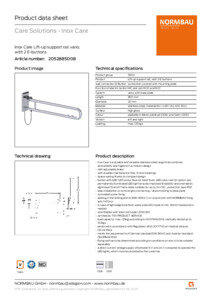

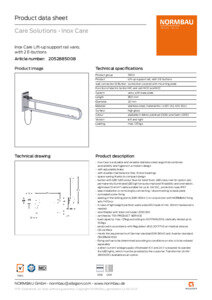

Product data sheet
Fixing instruction and directions for use
Technical Drawing
Isometric drawing
Images
Product image
Assembly image
Detail image

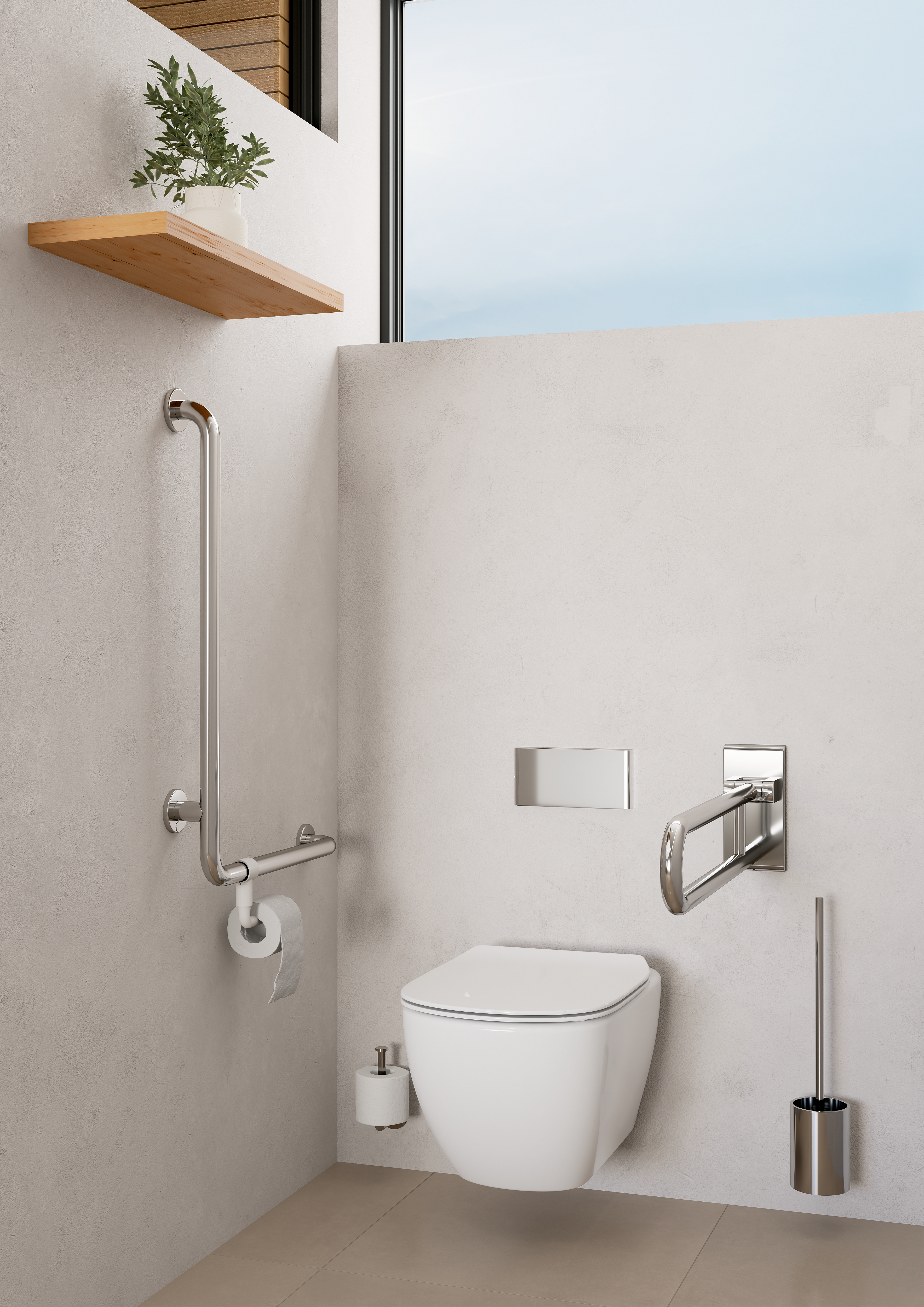

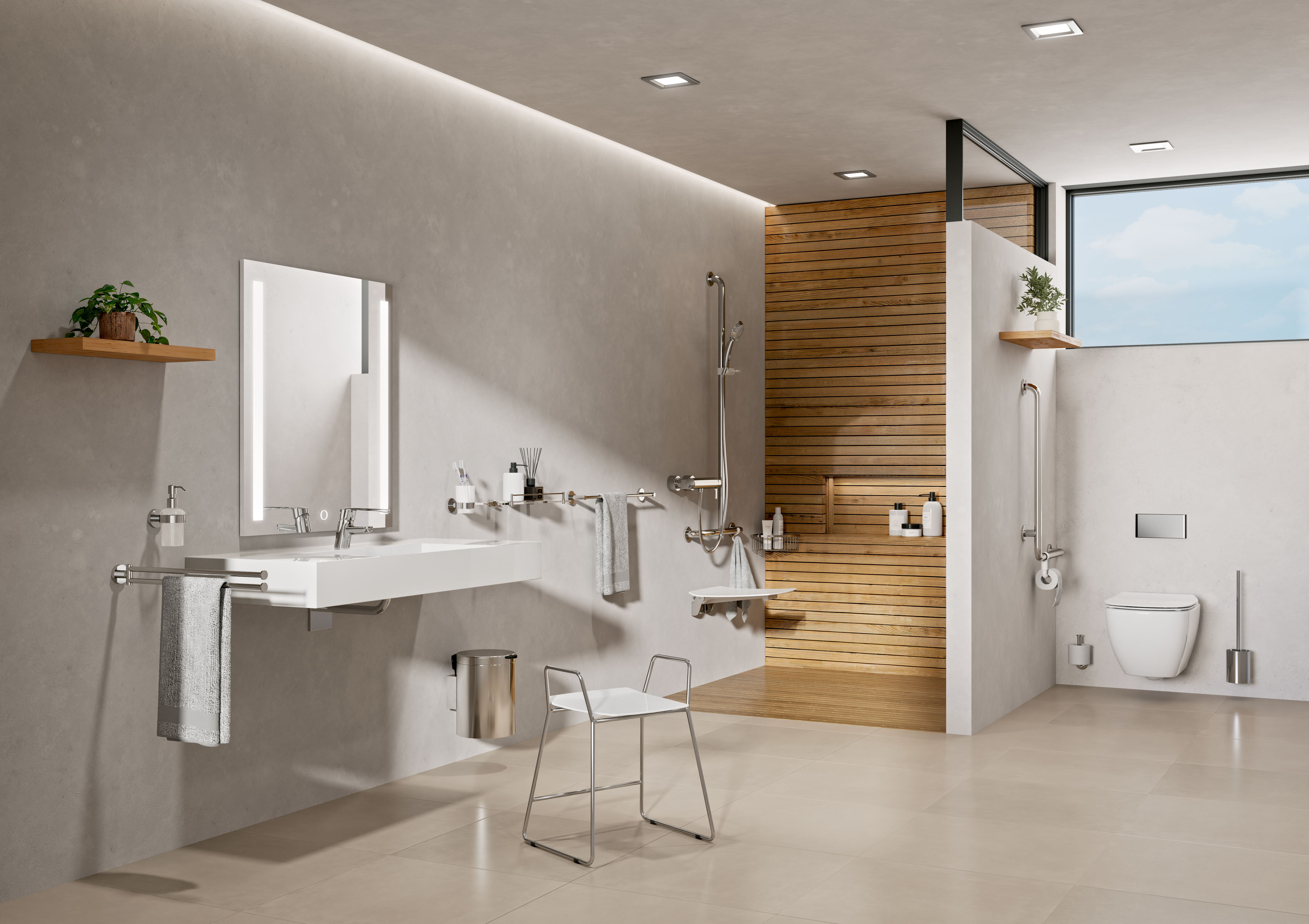

Situational image
Partial situational image
Overall download
ZIP file
- Inox Care is a durable and versatile stainless steel range that combines accessibility and hygiene in a modern design
- with adjustable brake
- with durable maintenance-free, friction bearings
- space-saving thanks to compact design
- button with LED: LED colour blue for toilet flush, LED colour red for option call, permanently illuminated LED light ensures improved findability and orientation, eight lead 0,14mm² helix cable suitable for up to 24V D.C., protection type IP67
- easy installation or removing by connecting / disconnecting to base plate
- concealed screw fixing
- sealing of the drilling points (DIN 18534-1) in conjunction with NORMBAU fixing sets 7470xxx
- In case of lightweight partition walls a backfill made of min. 30mm hardwood is needed
- retrofittable with toilet roll holder 2050300
- certified by TÜV PRODUCT SERVICE
- load capacity: max. 125kgs according to ISO17966:2016, statically tested up to 150kgs
- produced in accordance with Regulation (EU) 2017/745 on medical devices
- CE-certified
- meets the requirements of German standard DIN 18040 and Austrian standard ÖNORM B 1600
- Fixing set has to be determined according to conditions on site, is to be ordered separately
- a direct current voltage supply of between 6 V and 24 V is required to operate the LED lights, which must be provided by the customer
- Product category : Lift-up support rail
- Product version : with 2 E-buttons
- Product group : 5500
- Base plate : with base plate
- Length L : 850 mm
- Diameter : 32 mm
- Function of electric button : WC and call: NOC and NCC
- wall connection E-Button : connection covered with mounting plate
- Material : stainless steel, material No. 1.4301 (A2, AISI 304)
- Surface : high gloss
- Version : left and right
- Colour : Mirror polished
- Colours available : available in Mirror polished (008) and Satin (009)
- Loading : max. 125 kg
